6.2. Tower Mounting
Use the included tower stands to mount the UPS in an upright tower position by
following the steps below.
1
Assemble the tower stands and the tower stand expanders
1
according to the
size of the UPS (see Figure 6-3 & Figure 6-4).
Tower Stand
× 4 PCS
Tower Stand
Expander × 4 PCS
Tower Stand
× 4 PCS
Tower Stand
Expander × 6 PCS

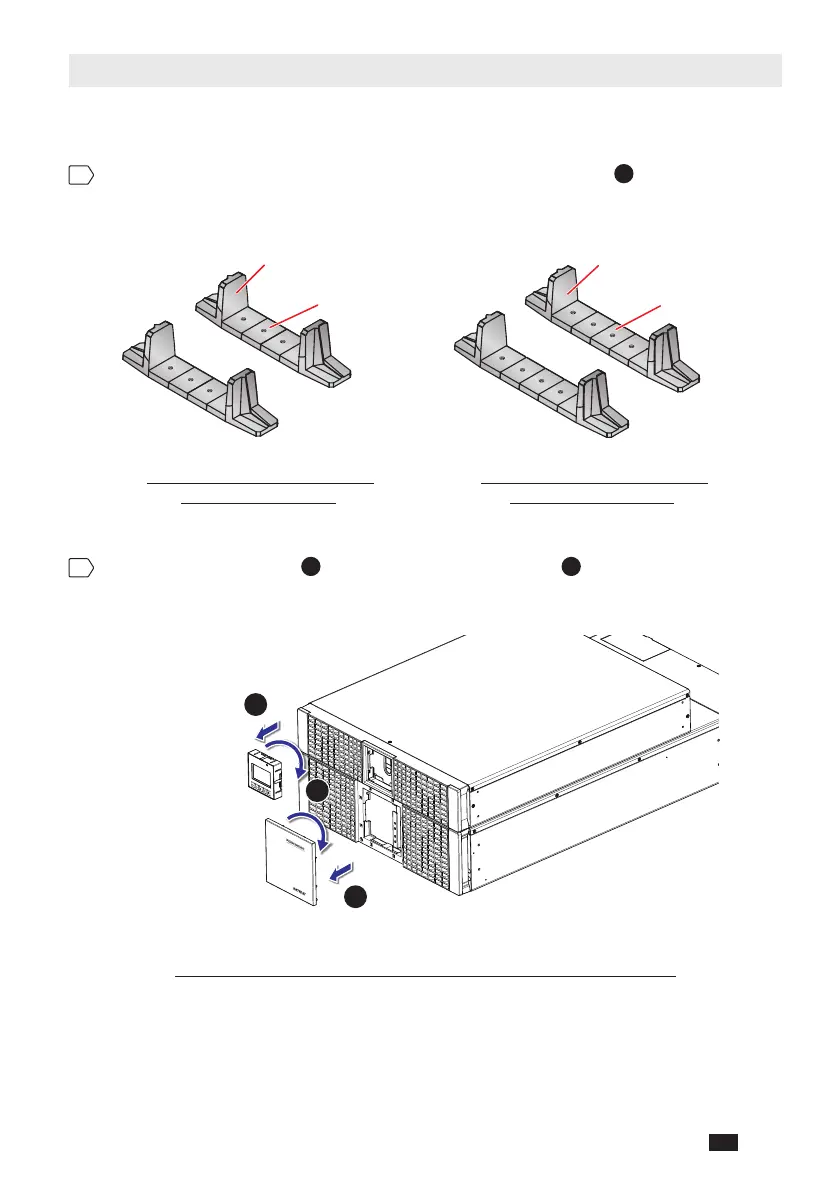

(Figure 6-3: Assemble the Tower
Stands for 7 kVA UPS)
(Figure 6-4: Assemble the Tower
Stands for 11 kVA UPS)
2
Pull out the two panels
2
, rotate them 90° clockwise
3
and re-insert them
(see Figure 6-5).
(Figure 6-5: Rotate the Two Panels and Two Socomec Logo Nameplates)
