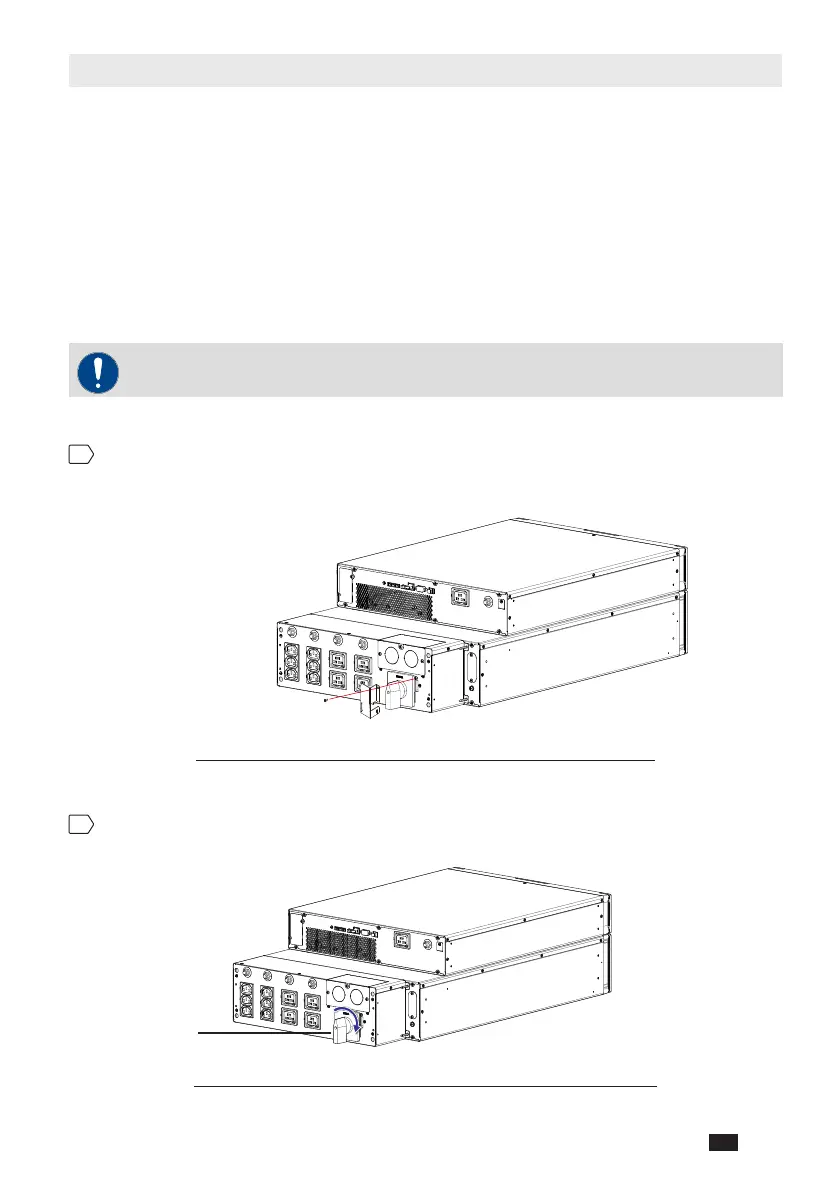

6.3. Plug-in manual bypass Disassembly & Installation
6.3.1. Precautions Prior to Plug-in manual bypass Disassembly
- The Plug-in manual bypass is assembled with the UPS when it is shipped out
from the Socomec factory. Disassembly of the Plug-in manual bypass must be
performed by appropriately trained personnel.
- To carry out UPS maintenance without interrupting its power supply, please
follow the procedures below to turn the switch of the Plug-in Manual Bypass to
the Bypass position to let the UPS automatically shut down.
Before to proceed to the bypass operation, ensure the UPS is set as Standby
Mode = Bypass output. See section 9.1.2
1
Remove the screw shown below to remove the cover plate of the manual
bypass switch.
(Figure 6-8: Remove the Cover Plate of the Manual Bypass Switch)
2
Turn the manual bypass switch to the Bypass position.
Manual Bypass
Switch
(Figure 6-9: Turn the Manual Bypass Switch to the Bypass Position)
Screw
Cover plate
OPENING THIS COVER PLATE WILL CAUSE
INVERTER SHUTDOWN.
ONLY AUTHORIZED SERVICE PERSONNEL
CAN OPEN AND OPERATE IT.
