socomec NETYS RT - Page 40

NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC
40
EN
3

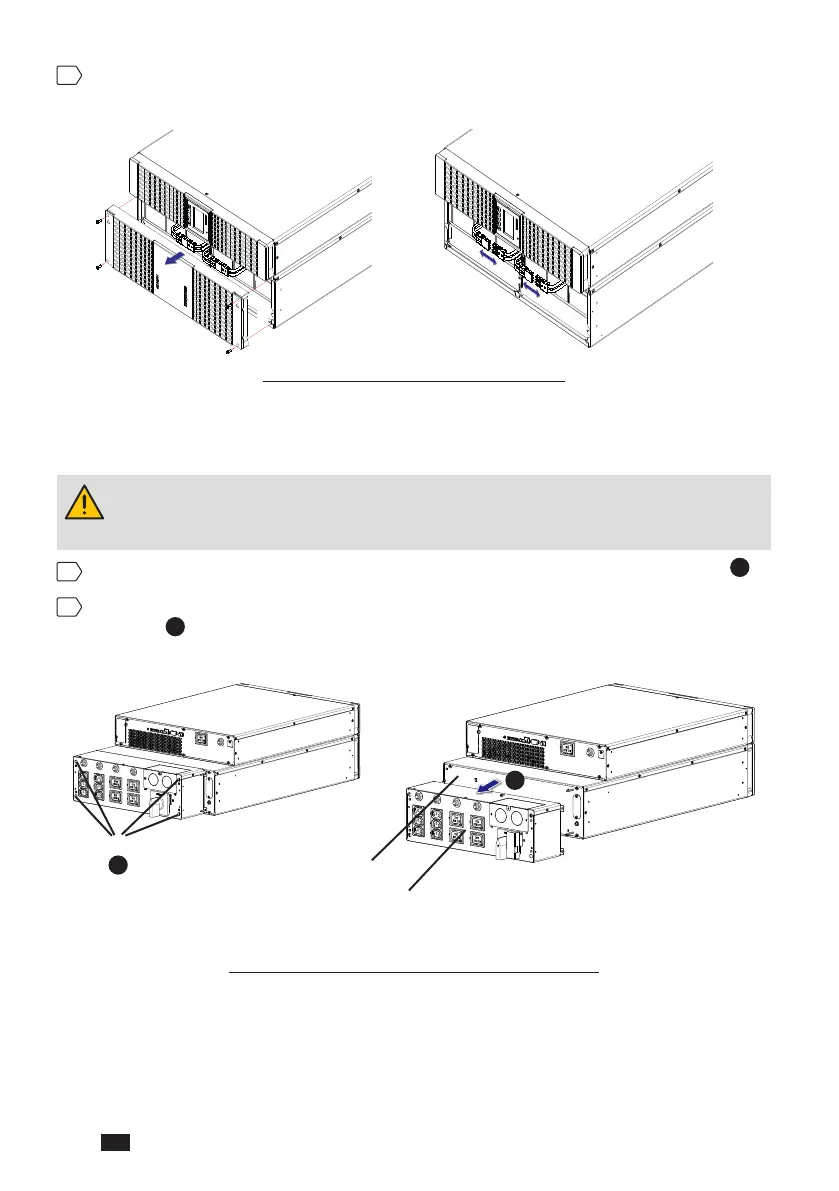

Remove the battery pack’s front bezel and disconnect the battery terminals
before disassembling the Plug-in manual bypass (see Figure 6-10).
(Figure 6-10: Disconnect the Battery Power)
6.3.2. Plug-in manual bypass Disassembly
Before disassembling the Plug-in Manual Bypass, please ensure that you
have followed 6.3.1 Precautions Prior to Plug-in Manual Bypass
Disassembly.
1
Remove the four screws from the Plug-in manual bypass (see Figure 6-11_
1
).
2
Disassemble the Plug-in manual bypass from the rear of battery pack (see
Figure 6-11_
2
).
(Figure 6-11: Disassemble the Plug-in manual bypass)
Rear of battery pack
Plug-in manual bypass
2
Screw x 4
1
