6.3.3. Plug-in manual bypass Assembly
1
Align the three holes of the Plug-in Manual Bypass (
1
) with the three
guideposts (
2
) on the rear of battery pack.
2
Attach the Plug-in manual bypass to the rear of the battery pack, and use
a cross-head screwdriver (
3
) and four screws (
4
) to rmly attach the Plug-in
manual bypass to the rear of battery pack (see Figure 6-12).

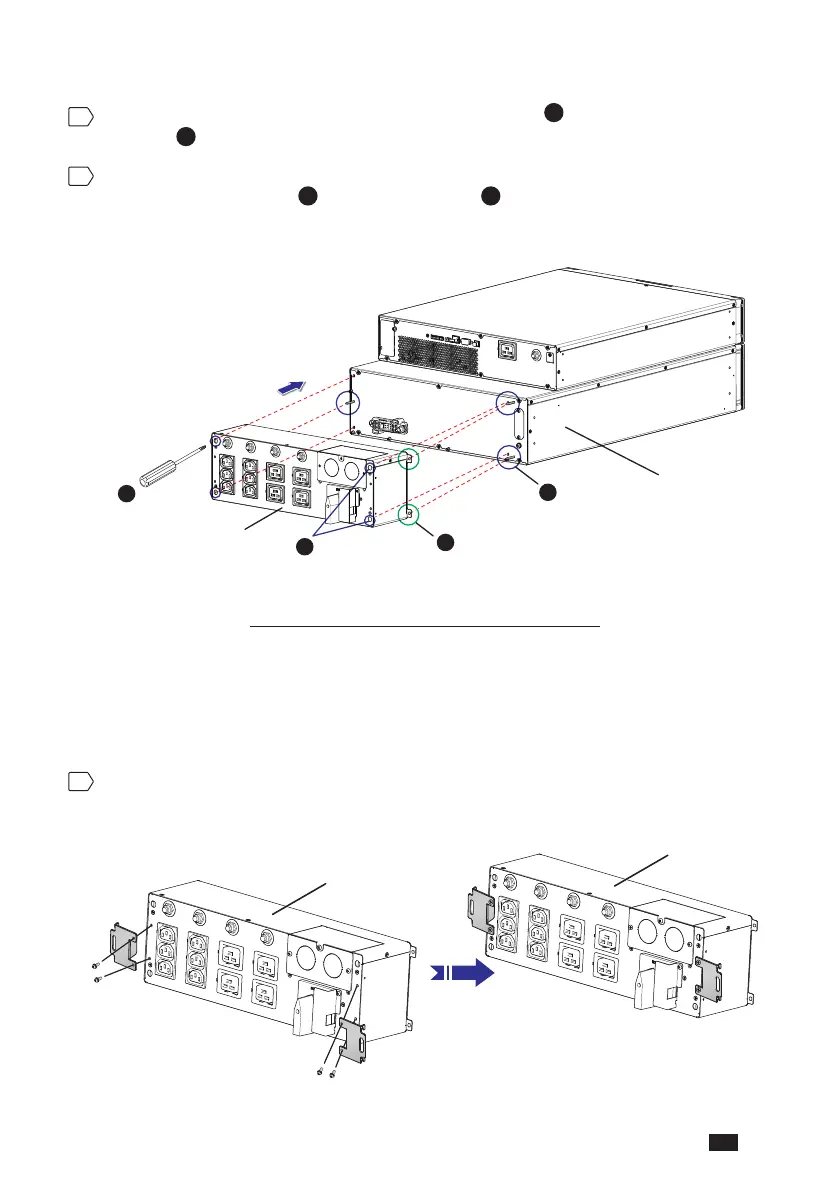

(Figure 6-12: Assemble the Plug-in manual bypass)
6.3.4. Plug-in manual bypass Rack-installation
If you need to install the Plug-in manual bypass on a rack, please follow the steps
below.
1
Attach the provided mounting brackets to the Plug-in manual bypass using the
screws that came with the brackets.
Plug-in manual bypass
Plug-in manual bypass
Screwdriver
Screw x 4
(Left: 2 & Right: 2)
Hole x 3
(Left: 1 & Right: 2)
Guidepost x 3
(Left: 1 & Right: 2)
Plug-in manual bypass
Rear of Battery Pack
1
2
3
4
