socomec NETYS RT - External Battery Pack Connection

NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC
48
EN

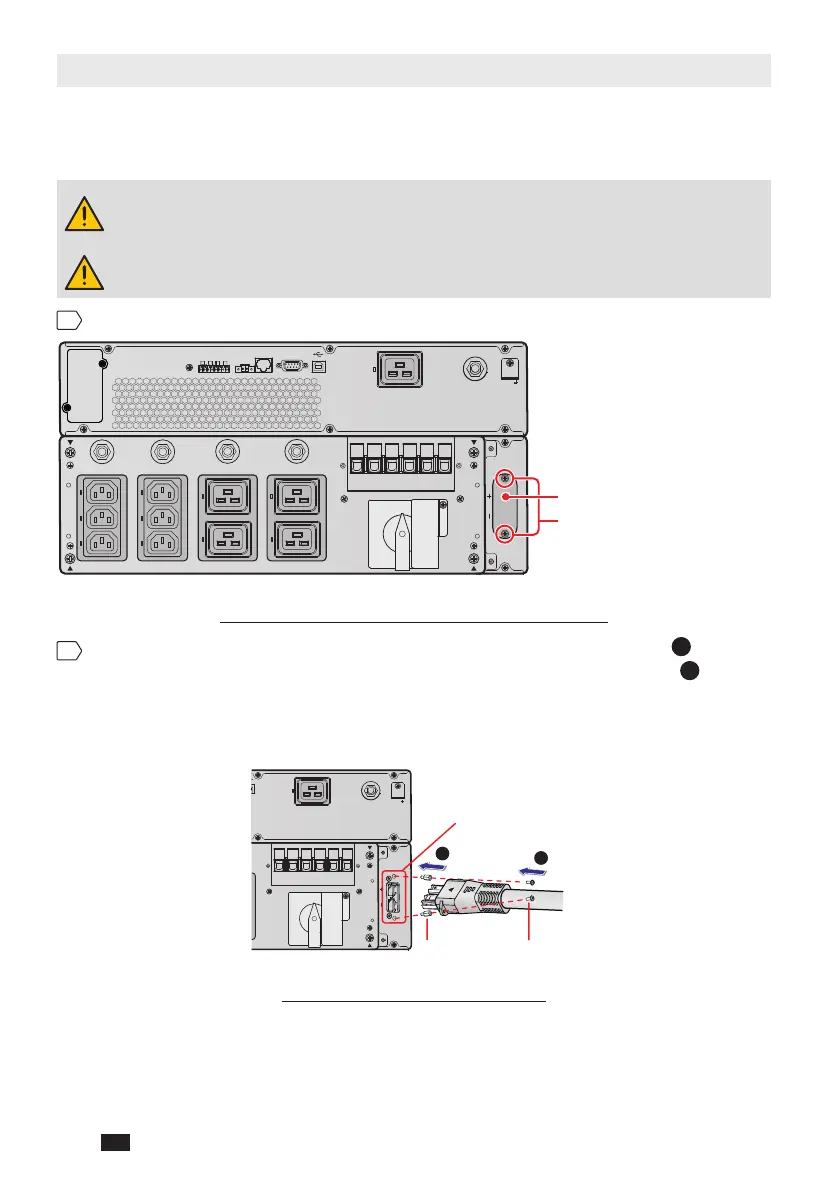

7.3. External Battery Pack Connection
To increase the battery back-up time, you can connect several external battery
packs to the UPS. Please follow the steps below (Figure 7-5 & Figure 7-6) and
information in 5.8 External Battery Connector to complete the connection.
When connecting the external battery pack to the UPS, you must install an
appropriate non-fuse DC breaker or a fast-acting fuse that meets the safety
certication. Do not use an AC breaker.
The breaker must be a 2-pole non-fuse DC breaker with characteristics of
1-pole 250Vdc, 2-pole 500Vdc and 35kA (or above) DC breaking capacity.
1
Remove the two screws from the external battery connector’s panel shown below.
SMART SLOT
MANUAL BYPASS SWITCH
EXTERNAL BATT. CONNECTOR 240V DC 46A
OUTPUT SOCKET-4
10A MAX. PER OUTLET
OUTPUT SOCKET-3
16A MAX. PER OUTLET
OUTPUT BREAKER-2
250V AC 25A
OUTPUT SOCKET-2
16A MAX. PER OUTLET
OUTPUT BREAKER-3
250V AC 25A
OUTPUT BREAKER-4
250V AC 20A
OUTPUT BREAKER-5
250V AC 20A
OUTPUT SOCKET-5
10A MAX. PER OUTLET
P2
P3
P4P1
RS-232
DRY CONTACT RS-485REPO
OUTPUT BREAKER-1
250V AC 20A
WARNING:
OPENING THIS COVER PLATE WILL CAUSE
INVERTER SHUTDOWN.
ONLY AUTHORIZED SERVICE PERSONNEL
CAN OPEN AND OPERATE IT.
NORMAL
TMOV
POWDER SHARE OUTPUT
16A MAX – SOCKET-1
Two Screws
External Battery
Connector’s Panel
(Figure 7-5: Remove External Battery Connector’s Panel)
2
Insert the provided battery cable into the external battery connector
1
and use
the provided two screws and two standoffs to rmly x the battery cable
2
.
Smart SLOT
MANUAL BYPASS SWITCH
EXTERNAL BATT. CONNECTOR 240V DC 46A
OUTPUT SOCKET-4
10A MAX. PER OUTLET
OUTPUT SOCKET-3
16A MAX. PER OUTLET
OUTPUT BREAKER-2
250V AC 25A
OUTPUT SOCKET-2
16A MAX. PER OUTLET
OUTPUT BREAKER-3
250V AC 25A
OUTPUT BREAKER-4
250V AC 20A
OUTPUT BREAKER-5
250V AC 20A
OUTPUT SOCKET-5
10A MAX. PER OUTLET
P2
P3
P4P1
RS-232
DRY CONTACT RS-485REPO
OUTPUT BREAKER-1
250V AC 20A
OUTPUT SOCKET-1
16A MAX.
WARNING:
OPENING THIS COVER PLATE WILL CAUSE
INVERTER SHUTDOWN.
ONLY AUTHORIZED SERVICE PERSONNEL
CAN OPEN AND OPERATE IT.
NORMAL
TMOV
After Removal of
the External Battery
Connector’s Panel
Standoffs Screws
1
2
(Figure 7-6: Battery Cable Connection)
