- 12 -
SR4 MANUAL

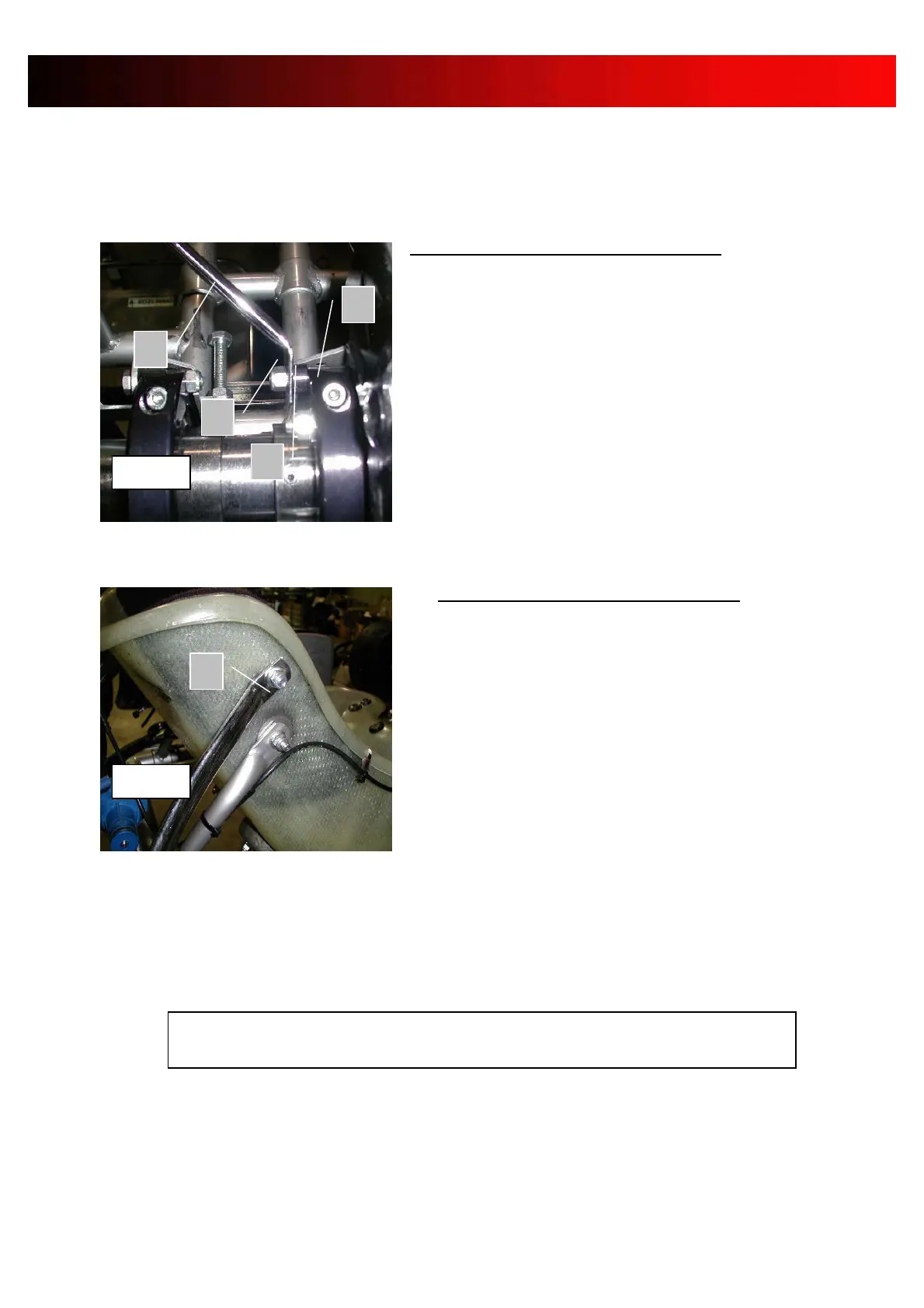

6-5 ASSEMBLY OF THE SEAT STIFFENERS.
ASSEMBLY OF THE LOWER END (PIC 1)
1- Place the Chc M8 screw (1) in the hole of the bearing
support (2).
2- Place the stay bolt PC 0332.004 (3) as indicated.
3-Put the seat stiffener lower end (4) in place.
4-Put the bolt in place and pre-tighten.
ASSEMBLY OF THE UPPER END (PIC 2)
5- Place the upper end of the stiffener (5).
6- Make sure there is no contact with the exhaust
system and with any part of the engine. If necessary ,
slightly bend the stiffener.
7- Drill a 8.5 mm diameter hole (5) in the seat.
9- Tighten both upper and lower end.
For screws and bolts references, refer to the spare
parts catalogue .
1
2
3
4
5
FOR OTHER TYPES OF STIFFENERS!, PLEASE REFER TO THE SR4 SPARE
PARTS CATALOGUE OR TO THE ITAKA CATALOGUE
PIC 2
PIC 1
