SOFAR 1.1K~3KTL User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 22 -

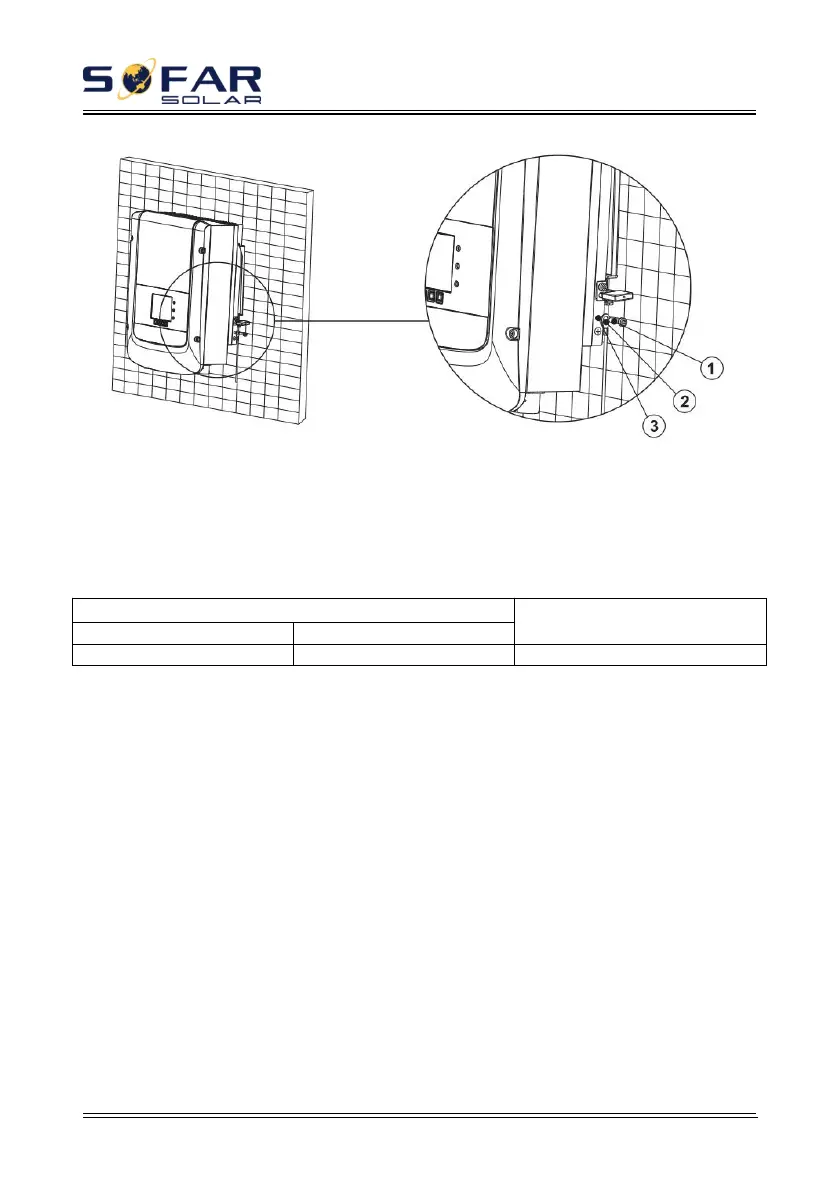

Figure4-4 Ground terminal composition
1.M5 screw、2.OT Terminal、3.Tapped hole
4.3. Connecting DC Input Power Cables
Table 4-1 Recommended DC input cable specifications
Cross-Sectional Area (mm ²)
External Cable Diameter(mm)
Range
Recommended Value
4.0~6.0
4.0
4.5~7.8
Procedure
Step 1 Remove cable glands from the positive and negative connectors.
Step 2 Remove the insulation layer with an appropriate length from the
positive and negative power cables by using a wire stripper as show in Figure 4-5.
Figure 4-5 Connecting DC input power cables
