Sofar 3000TL - Connecting AC Output Power Cables

SOFAR 1.1K~3KTL User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 24 -
them against the insulation covers.
Step 7 Insert the positive and negative connectors into corresponding DC
input terminals of the inverter until you hear a "click" sound, as shown in Figure
4-7.

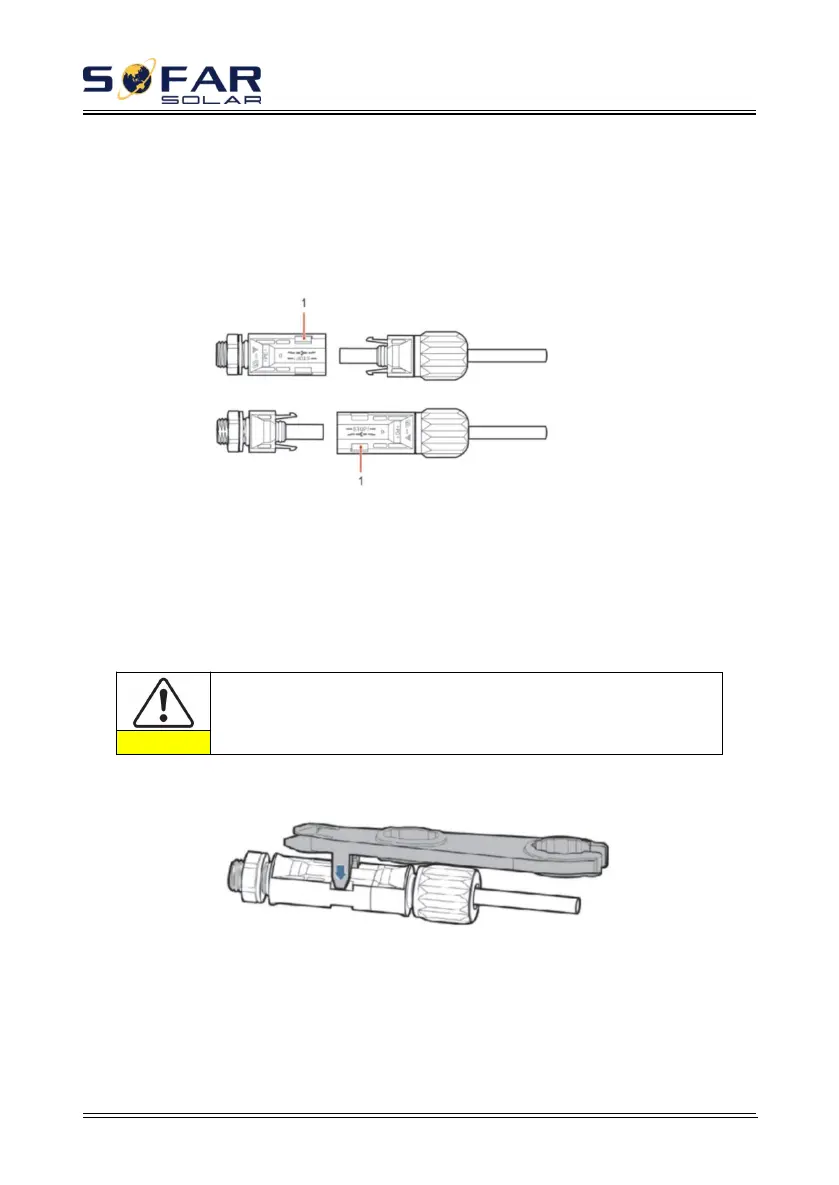

Figure 4-7 Connecting DC input power cables
1.Bayonet
Note:
Insert the stoppers into the unused DC connectors.
Follow-up Procedure
To remove the positive and negative connectors from the inverter, insert a
removal wrench into the bayonet and press the wrench with an appropriate strength,
as shown in Figure 4-8.
Before removing the positive and negative connectors, ensure that
the DC SWITCH is OFF.
Caution
Figure 4-8 Removing a DC input connector
4.4. Connecting AC Output Power Cables
Connect the SOFAR 1.1K~3KTL to the AC power distribution frame (PDF) or
