Sofar 3000TL - Rs485,Ct,Inverter Logic Interface Connection

SOFAR 1.1K~3KTL User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 28 -
Figure 4-15 Figure 4-16
4.5. RS485,CT,inverter logic interface connection

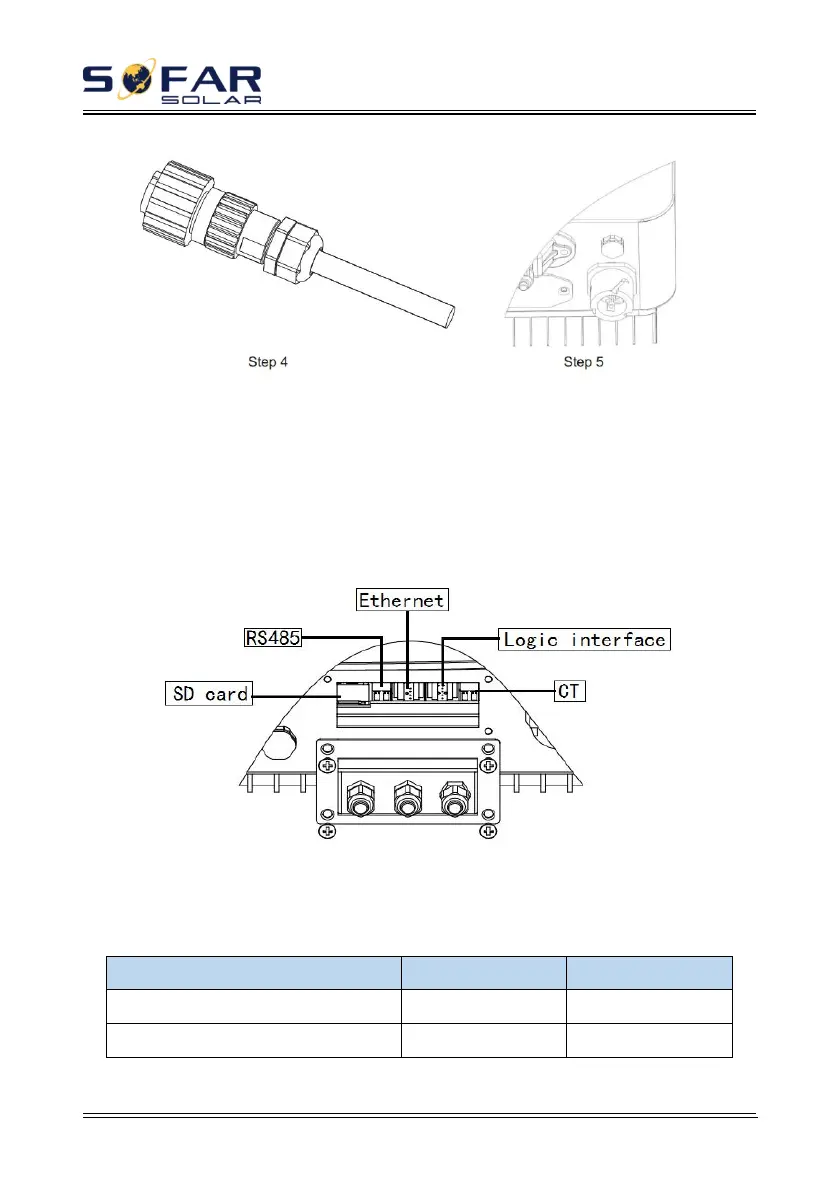

The communication interface location of the SOFAR 1.1K~3KTL is shown in
the figure below.
Figure 4-17
Table 4-3 Recommended communication cable size are shown below,The
wiring methods are the same for RS485 and CT,this part describes their wiring
methods and logic interface wiring method.
Communication function
RS485
CT
Cable size
0.5~1.5mm²
0.5~1.5mm²
Outside diameter
2.5~6mm
2.5~6mm
