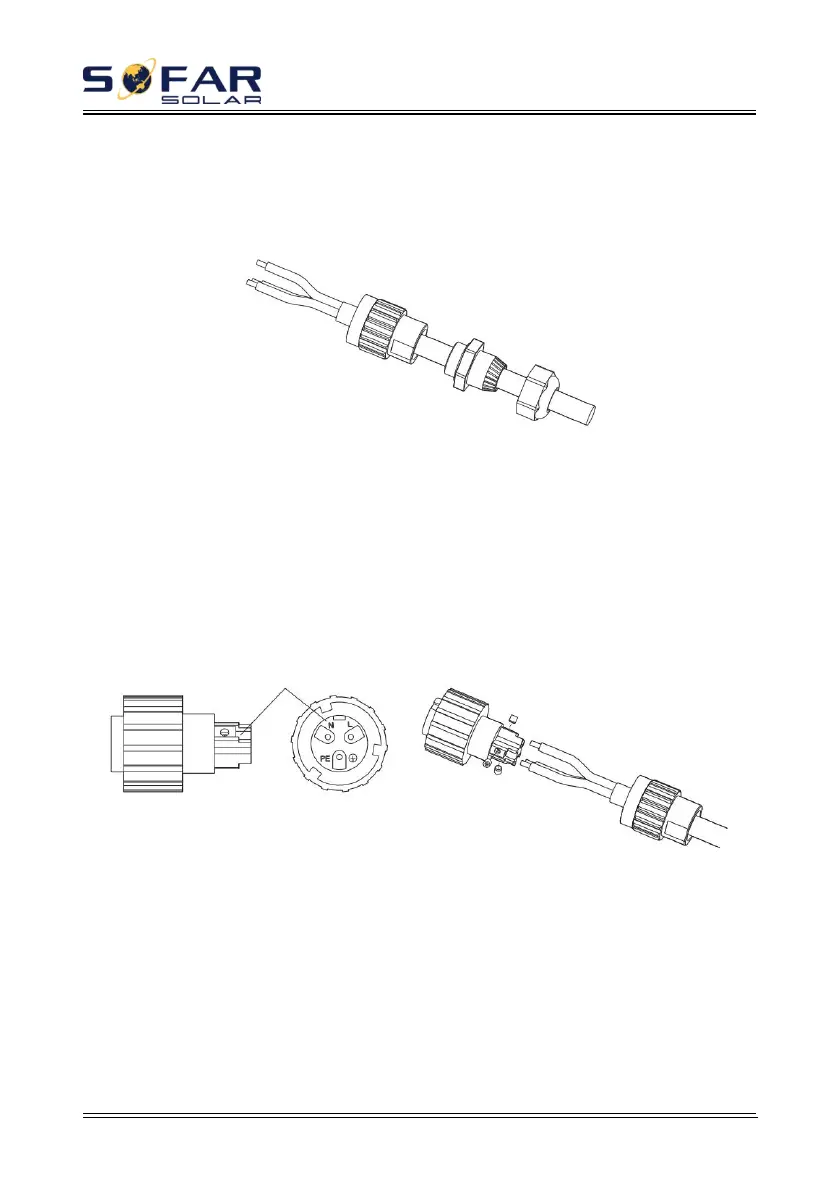

Step 2 Disassemble the AC connector according to the figure shown below:
insert the AC output cable (with its insulation layer stripped according to step 1)
through the waterproof locking cable gland;
Figure 4-13
Step 3 Connect AC output cable as per the following requirements:Connect
the yellow-green wire to the hole labeled ‘ PE’, fasten the wire using an Allen
wrench;Connect the brown wire to the hole labeled ‘L’, fasten the wire using an
Allen wrench;Connect the blue wire to the hole labeled ‘N’, fasten the wire using
an Allen wrench;
Figure 4-14
L--brown, N--bule, PE--yellow/green
Step 4 Secure the locking cable gland clockwise, shown as below: make sure
that all the wires are securely connected;
Step 5 Connect the AC output connector to the output wiring terminal of
inverter, rotate the AC connector clockwise until the fastener reaches its designated
position, as shown below.
