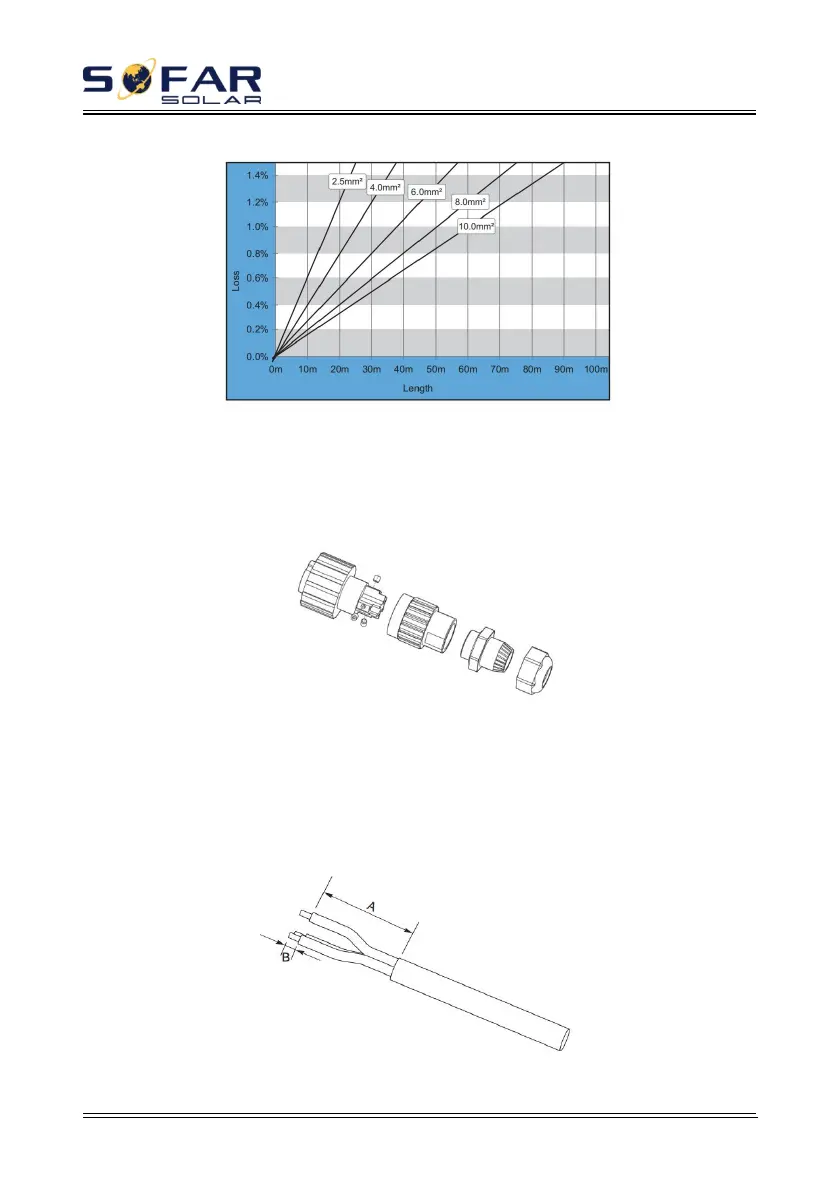

Figure 4-10 wire length, wire cross sectional area and wire power loss
Inverter is equipped with IP66 AC output connector dedicated for PV inverter,
customer need to make AC output cable connections by himself, and the
appearance of the AC connector is shown below:
Figure 4-11 AC output connector
AC wire connections procedure:
Step 1 Select appropriate cables according to Table 4-2, Remove the insulation
layer of the AC output cable using a wire stripper according to the figure shown
below: A: 30~50mm B: 6~8mm;
Figure 4-12
