SOFAR 1.1K~3KTL User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd

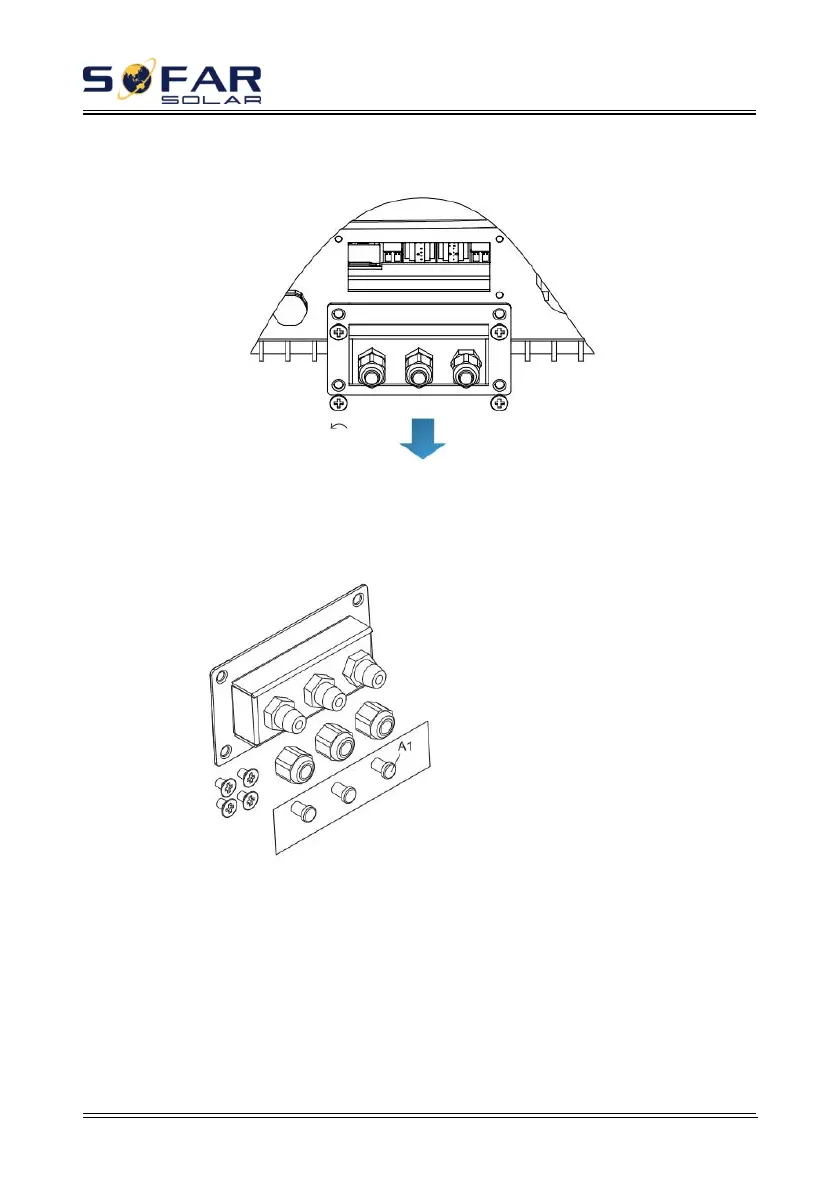

Step1 Remove the communication waterproof cover using a screwdriver;
Figure 4-18
Step2 Unlock the waterproof cable gland, remove the stopper in the
waterproof connector;
Figure 4-19
A1:Waterproof stopper
Step3 Select appropriate cable according Table4-2,remove the insulation layer
using a wire stripper, the length of the wire core is about 6mm,insert the cable
through the cable gland and waterproof cover, according to Table4-4,connect the
wires as per the labels, and secure the wire using a slotted screwdriver.as shown in
the figure below:
