128
Configuration Menu
In the
Yield tab
, you can define yield notifications to be sent via e-mail or text message (SMS).

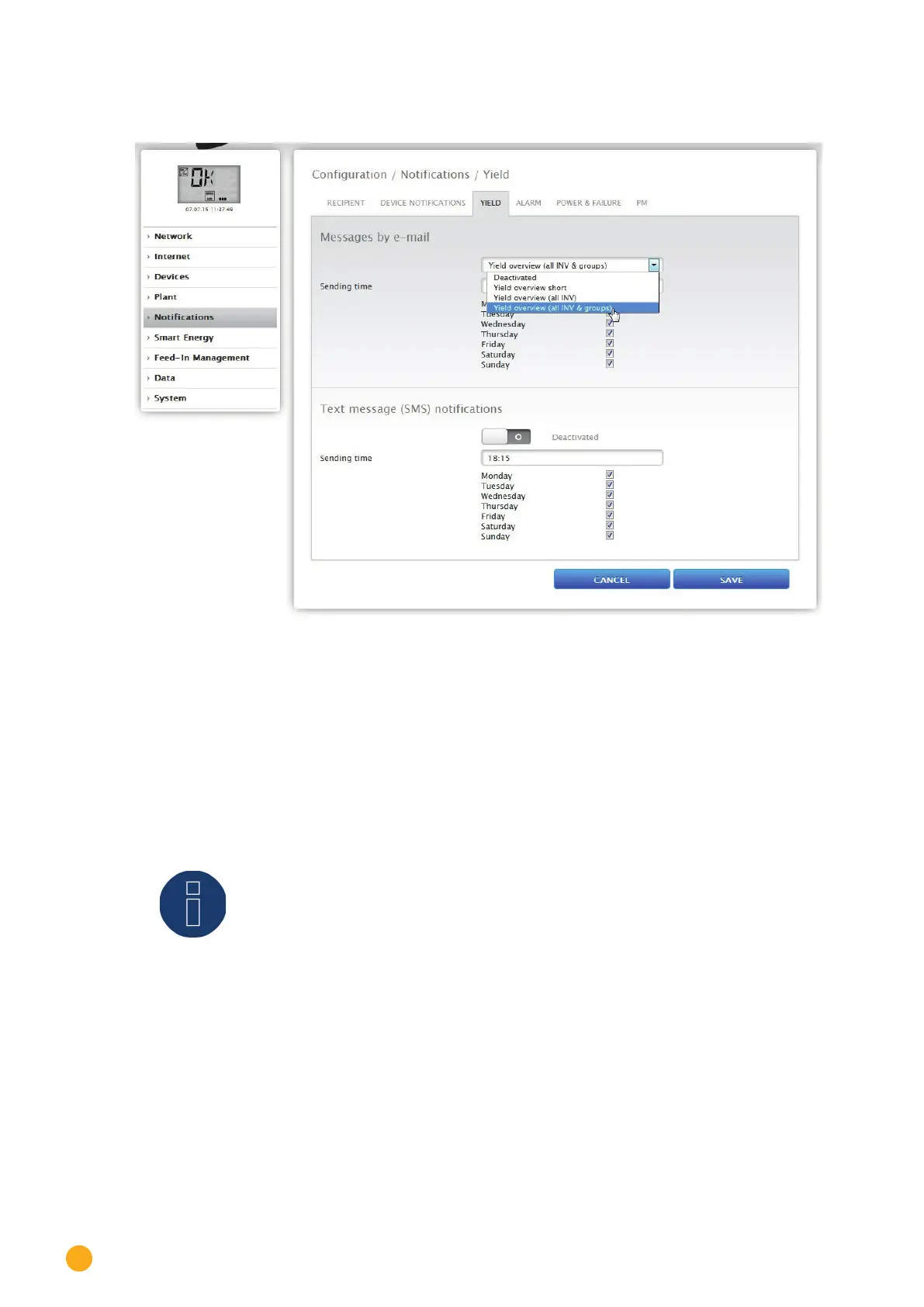

Fig.: De
ning Noti
cation times and setting types
The time frame for notifications can be defined here.
There are many types of settings:
•
Deactivated
•
Yield overview short
•
Yield overview (all INV)
•
Yield overview (all INV & groups)
Note
!
See the chapter
"Notification Settings"
in the
Installation Manual
for additional
information on the notification function.
