78
Installation
Setting passwords
If no password has been defined after the update to firmware 3.5.3, the following window appears with
security information.

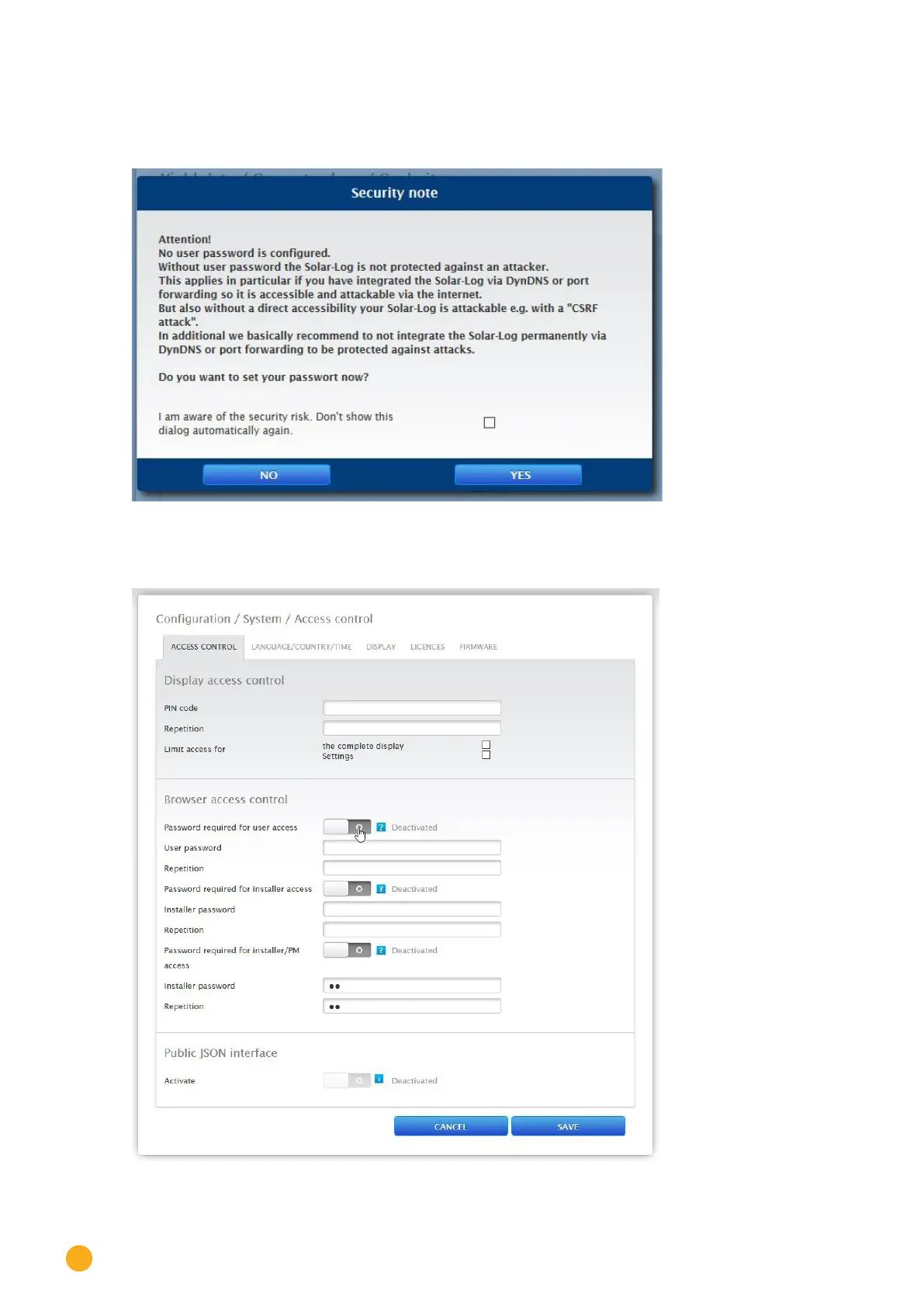

Fig.: Pop-up window with security information
Click on “Yes” here to directly define a user password. The following configuration page appears:
Fig.: Conguration page “Access control”
