307
Appendix
25.4.3 Variation with three relays
Specifications
Ripple control receiver signals
Level K2 K3 K4 Power out-
put
1 Off Off Off 100%
2 On Off Off 60%
3 Off On Off 30%
4 Off Off On 0%
Wiring
Fig.:

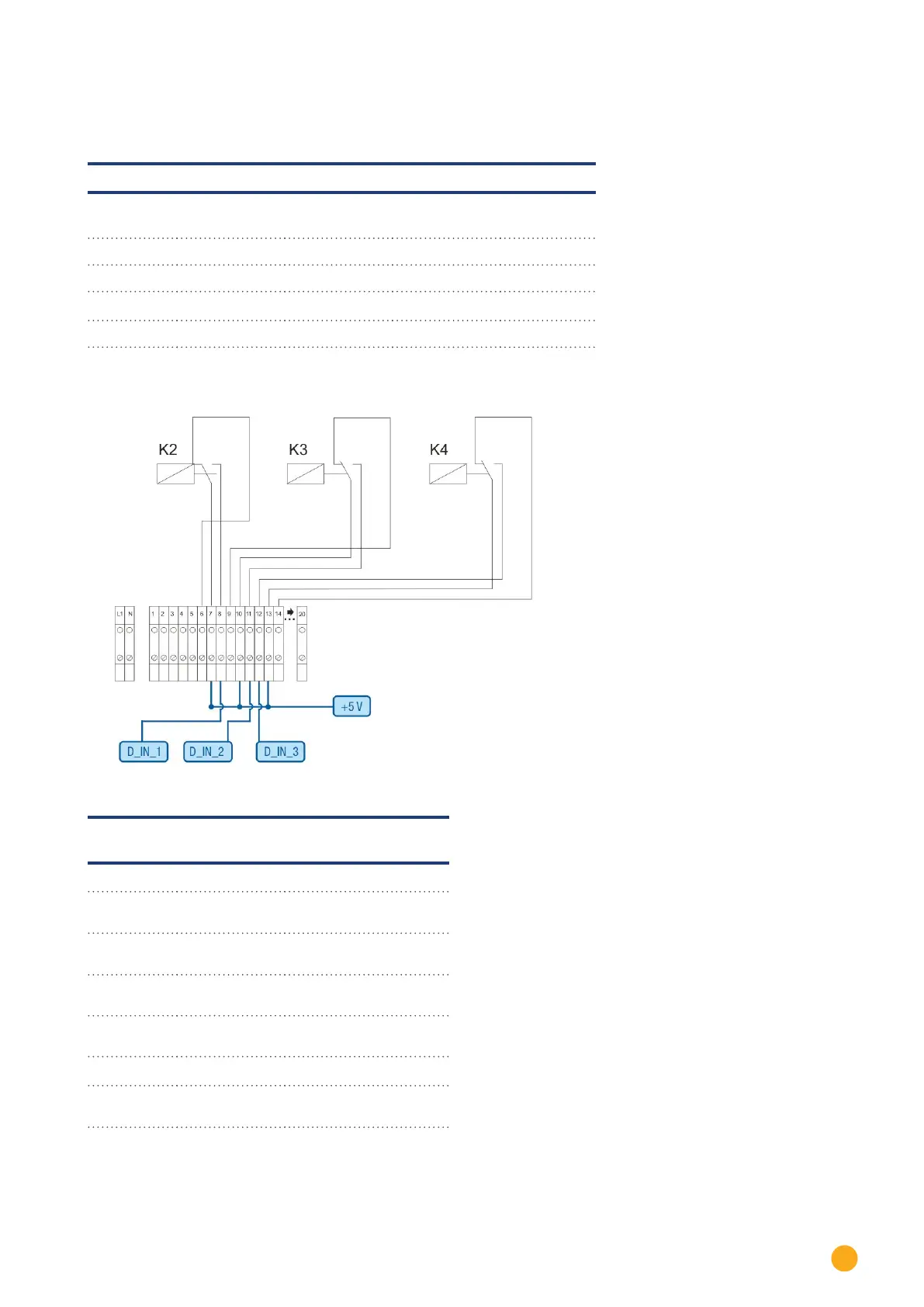

Fig.: Wiring a ripple control receive with two relays - example 3
Connecting PM+ terminal connector
and ripple control receiver
PIN Assignment Meaning
1 +5V Control voltage for active
power
2 D_IN_1 Level 2
60%
3 D_In_2 Level 3
30%
4 D_In_3 Level 4
0%
5 D_In_4 unused
6 +5V Control voltage for reac
-
tive power (unused)
