Accessing Diagnostic values
17
.5
Ac
cessing F
eed-In Management
To access the Feed-In Management menu, go to
Diagnostic | Feed-In Management.
Note
!
The menu
Feed-In Management
under
Diagnostic | Feed-In Management
only
appears if active power has been configured in the
Configuration | Feed-In Ma-
nagement
section.

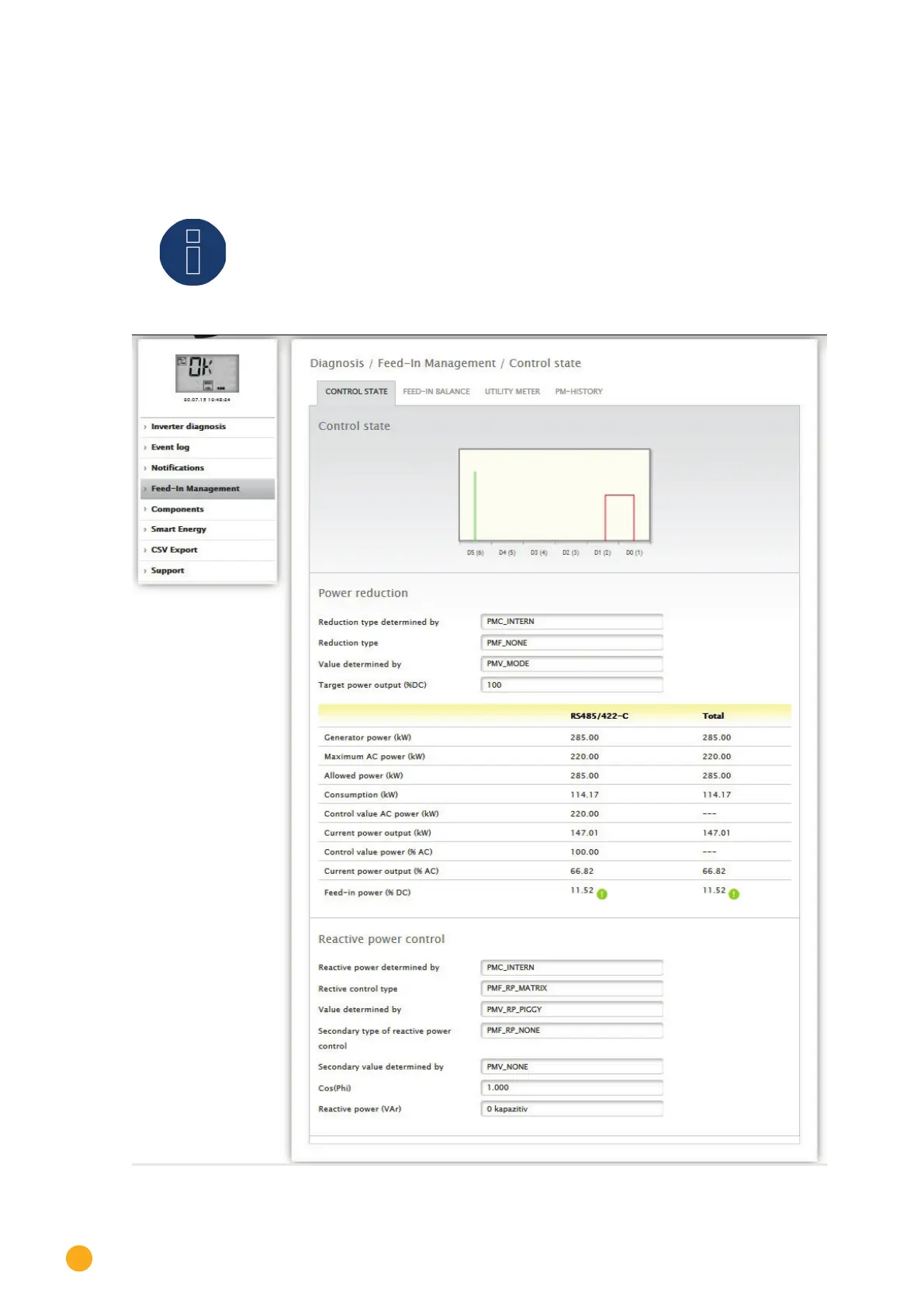

Fig.: Feed-In Management - Control State
