143
Configuration Menu
Switch definitions
There is the option to assign one of the following states with a mouse click.
(See illustration: “Adjustable switch with help text”):
All of the contacts are permanently switched off (switch position “left”).
The contacts are switched on according to the configured automatic switching rule.
All of the contacts are permanently switched on (switch position “right”).

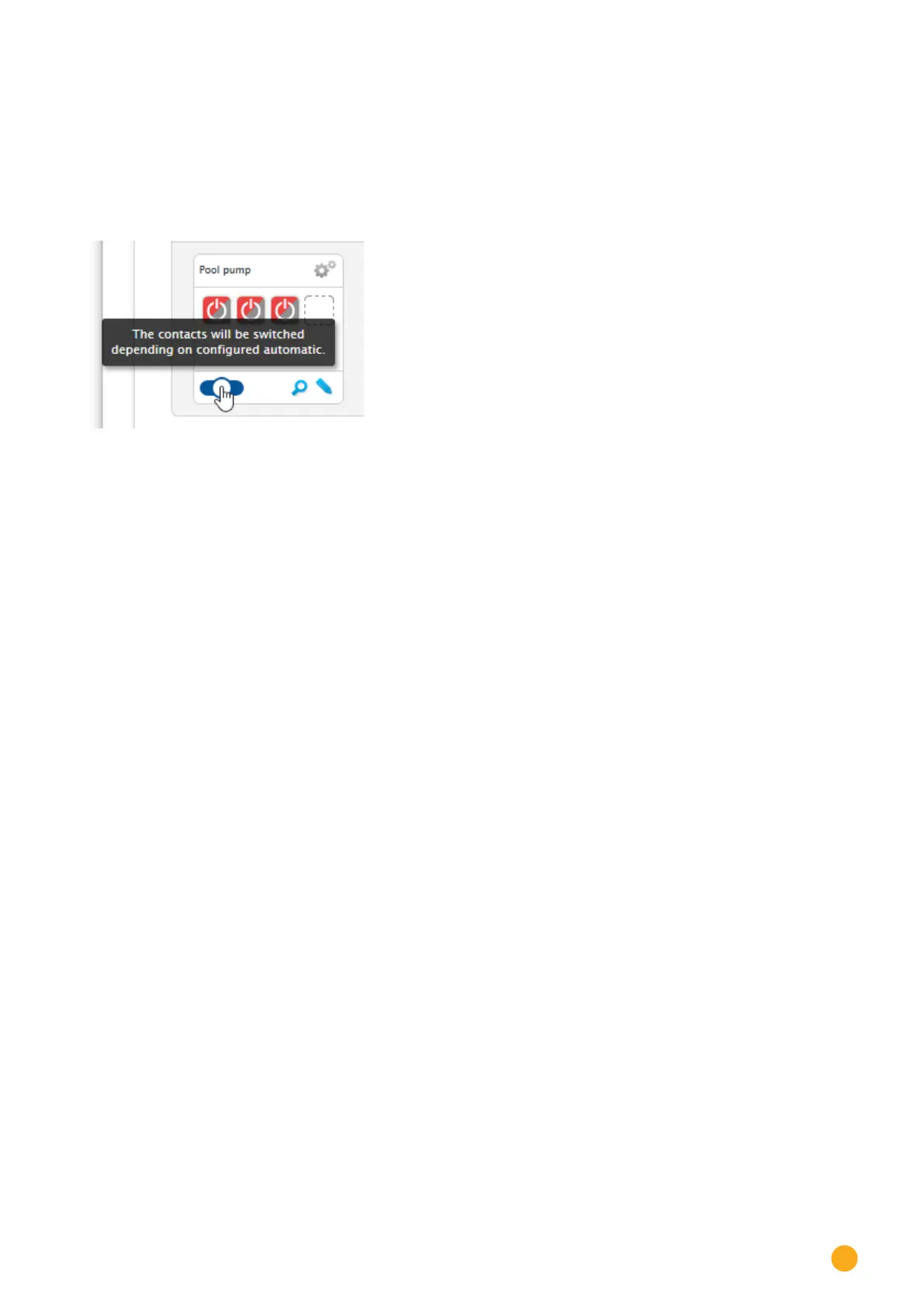

Fig.: Adjustable switch with help text
It is only possible to configure switching groups in the switch position “The contacts are switched ac-
cording to the configured automatic switching rule. The editing pencil for the switching group is not
visible for the other two options. If the switch is set to one of the other modes, the configured logic
remains and is active once the mode has been set back. Click on the gear icon to change the name of
the switching group, delete it or adjust the mode.
