129
Configuration Menu
16.6.
1
Explanation of the individual E-mail Functions:
Deactivated
•
When no e-mail notifications are to be sent.
Yield overview short
•
The yield data from the entire plant is totaled and displayed for the
day, month and year
. See the

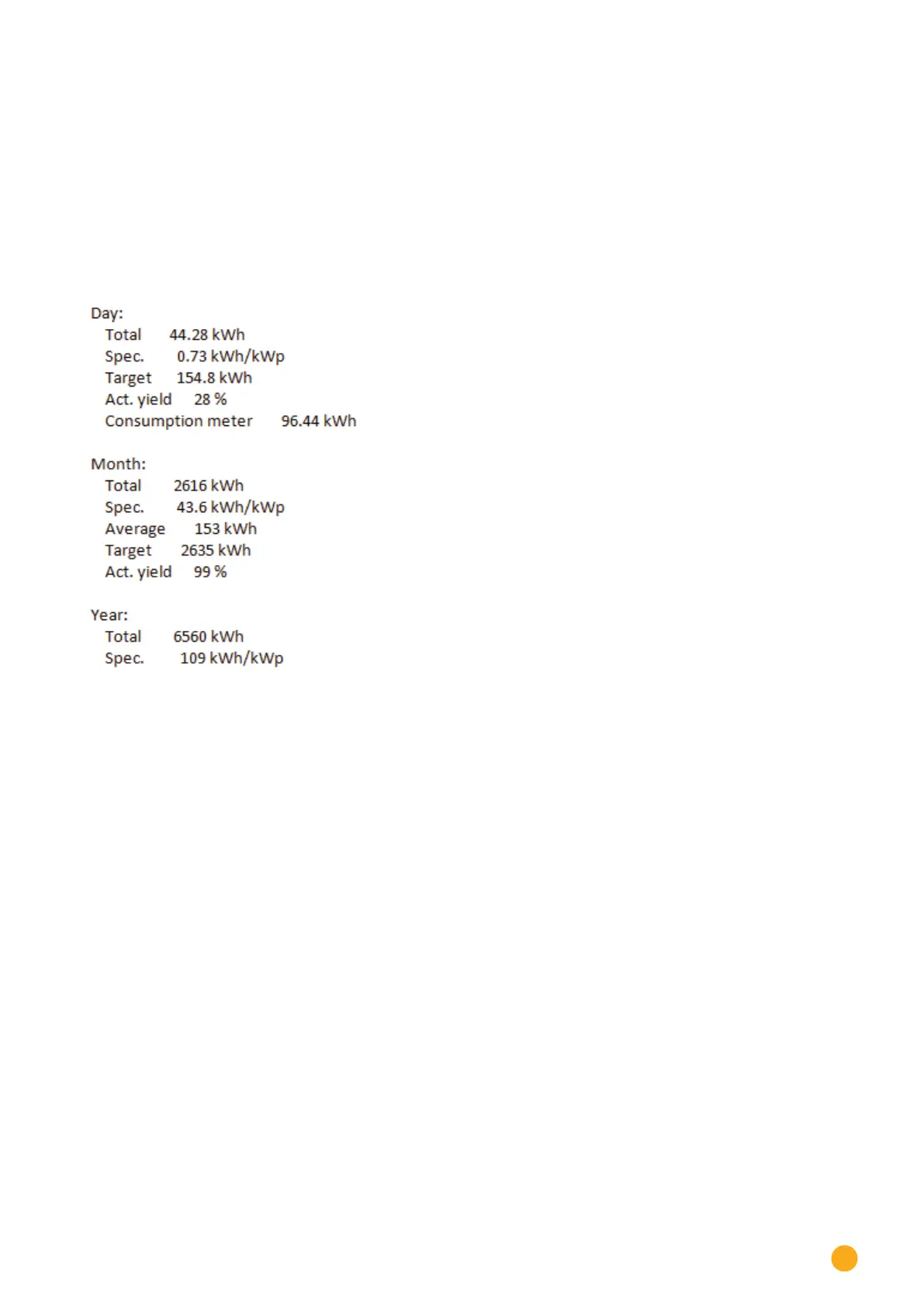

figure: Screenshot of a yield message.
Fig.: Example of a yield message
