SolarEdge EV Series User Manual

Ground connection is required for all grids, as described in Connecting the AC Grid to
the Connection Unit with Safety Switch on page 39.
Note that in some cases L1 and L2 are not interchangeable. In these places, L1 and L2
locations appear in the drawing.

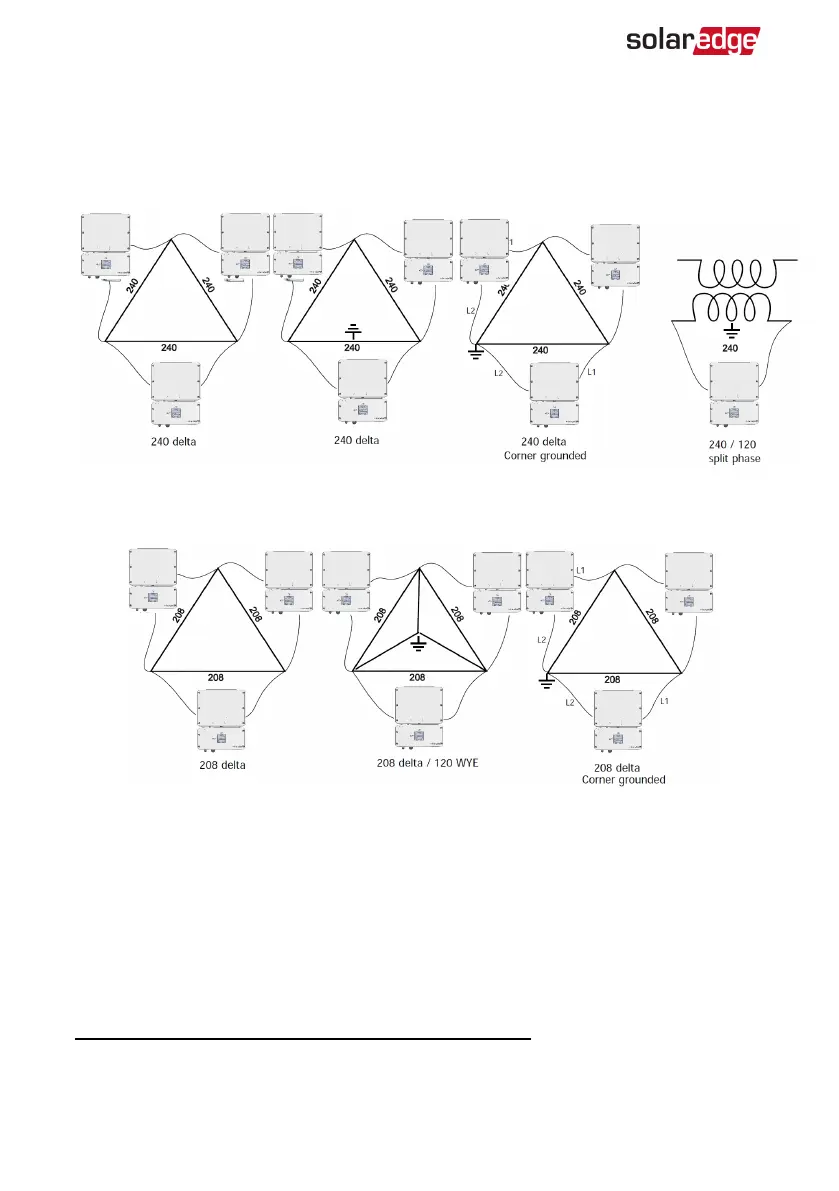

Figure 3: 240V AC grids supported by SolarEdge single phase inverter
Figure 4: 208V AC grids supported by SolarEdge single phase inverter
(1)
(1)
208V AC grids are only supported by some inverter models. Refer to the specification supplied with the
inverter.
EV Charging Single Phase Inverter Guide MAN-01-00588-1.1
16 Supported ACGrids

SolarEdge EV Series Specifications

General

AC Frequency	60 Hz
Protection Rating	IP65
AC Voltage	208/240 V
EV Charger Output Voltage	208/240 V
EV Charger Max. Output Current	32 A
Communication	Ethernet, Wi-Fi
Safety	UL1741
Operating Temperature Range	-25°C to 60°C
