SolarEdge EV Series User Manual

Removing the Inverter Cover
1. Switch the inverter ON/OFF/P switch to OFF. Wait 5 minutes for the capacitors to
discharge.
2. Turn the Safety Switch (if applicable) to OFF.
3. Disconnect the AC to the inverter by turning OFF the circuit breakers on the
distribution panel.
4. Open the Allen screws of the inverter cover and carefully pull the cover horizontally
before lowering it.
5.
Open the inverter cover (see Figure 22 ).
CAUTION!
When removing the inverter cover, make sure not to damage the internal
components. SolarEdge will not be held responsible for any components
damaged as a result of incautious cover removal.
ATTENTION!
Lors du retrait du couvercle, assurez-vous de ne pas endommager les
composants internes. SolarEdge ne peut être tenue pour responsable des
composants endommagés à la suite d'une imprudence dans le retrait du
couvercle.

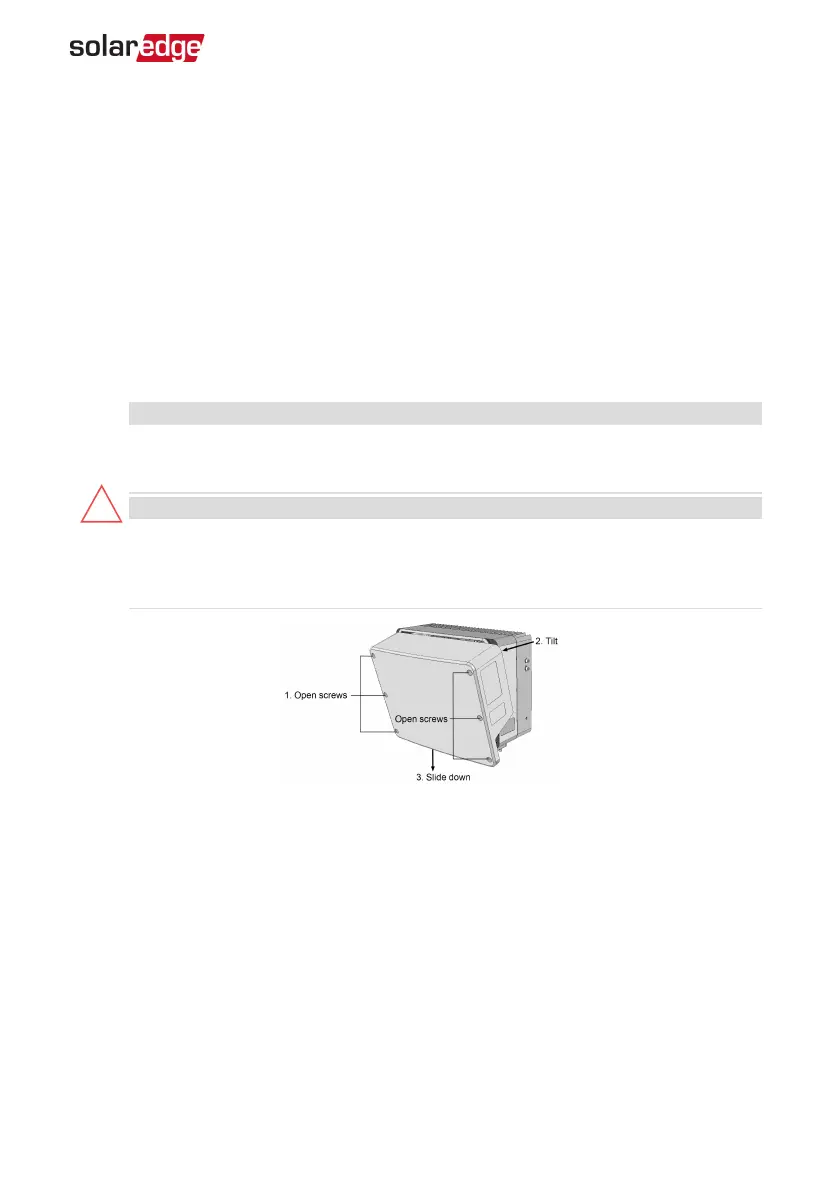

Figure 22: Removing the inverter cover
Removing the Connection Unit with Safety Switch
Cover
1. Turn OFF the AC breaker of the distribution panel and the safety switch (if
applicable).
2. Open the Connection Unit with Safety Switch cover: Release the four Allen screws
and remove the cover.
Chapter 5: Setting Up Communication to the Monitoring Platform 61
EV Charging Single Phase Inverter Guide MAN-01-00588-1.1

SolarEdge EV Series Specifications

General

AC Frequency	60 Hz
Protection Rating	IP65
AC Voltage	208/240 V
EV Charger Output Voltage	208/240 V
EV Charger Max. Output Current	32 A
Communication	Ethernet, Wi-Fi
Safety	UL1741
Operating Temperature Range	-25°C to 60°C
