SolarEdge EV Series User Manual

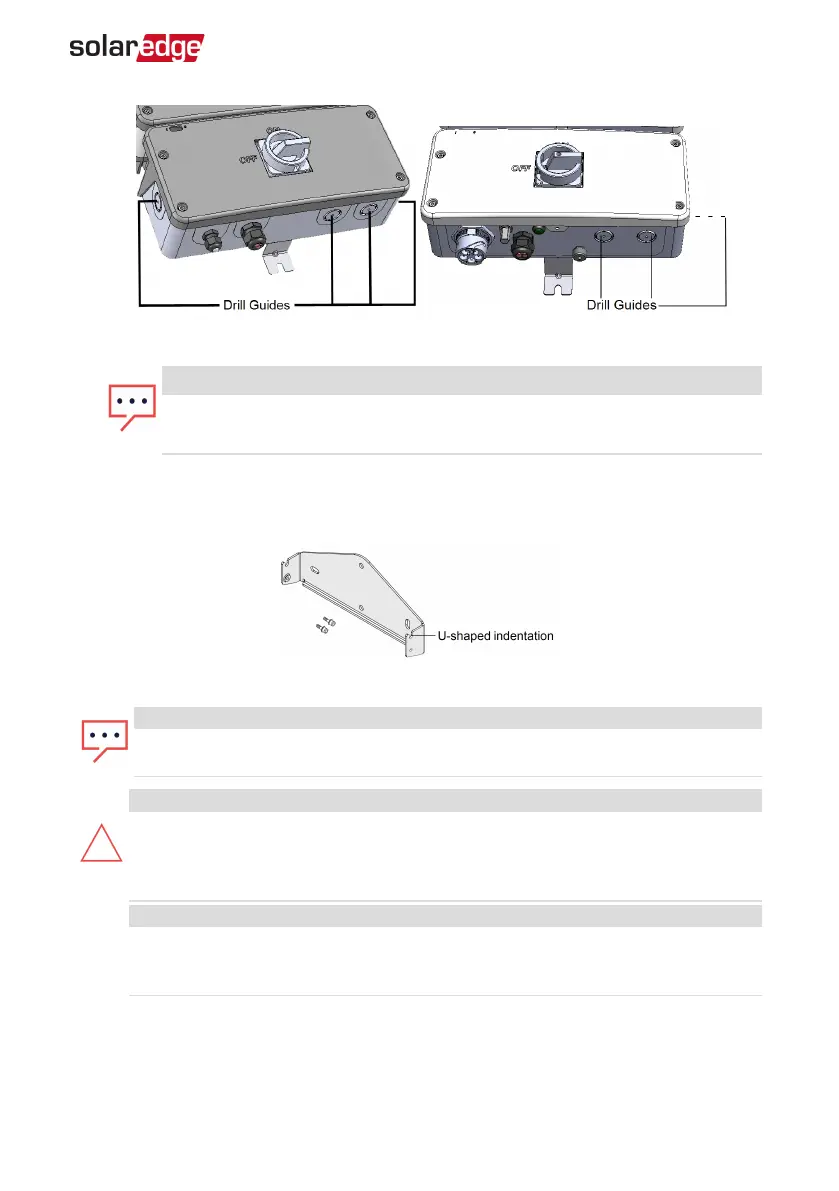

Figure 14: Connection Unit with Safety Switch drill guides
NOTE
Unused conduit openings and glands should be sealed with appropriate
seals.
Mounting the Inverter
The inverter is supplied with a mounting bracket kit:
Figure 15: Mounting bracket
NOTE
Make sure the mounting surface or structure can support the weight of the
inverter.
CAUTION!
SolarEdge inverters and power optimizers can be installed at a minimum
distance of 50 m/ 164 ft from the shoreline of an ocean or other saline
environment, as long as there are no direct salt water splashes on the inverter or
power optimizer.
 ATTENTION!

Les onduleurs SolarEdge peuvent être installés à une distance minimum de 50m
de la ligne d'eau de l'océan ou autre environnement salin, tant qu'il n'y a pas
d'éclaboussements d'eau salée directs sur l'onduleur.
1. Determine the inverter mounting location, on a wall, stud framing or pole. It is
recommended to mount the inverter in a location protected from direct sunlight.
2.
To allow proper heat dissipation, maintain the following minimum clearance areas
Chapter 3: Installing the Inverter 35
EV Charging Single Phase Inverter Guide MAN-01-00588-1.1

SolarEdge EV Series Specifications

General

AC Frequency	60 Hz
Protection Rating	IP65
AC Voltage	208/240 V
EV Charger Output Voltage	208/240 V
EV Charger Max. Output Current	32 A
Communication	Ethernet, Wi-Fi
Safety	UL1741
Operating Temperature Range	-25°C to 60°C
