SolarEdge EV Series User Manual

To open conduit drill guides:
1. Move the Connection Unit with Safety Switch ON/OFF/P switch and the inverter
ON/OFF/P switch to OFF.
2.
Loosen the screws on the front cover of the Connection Unit with Safety Switch, as
shown below:

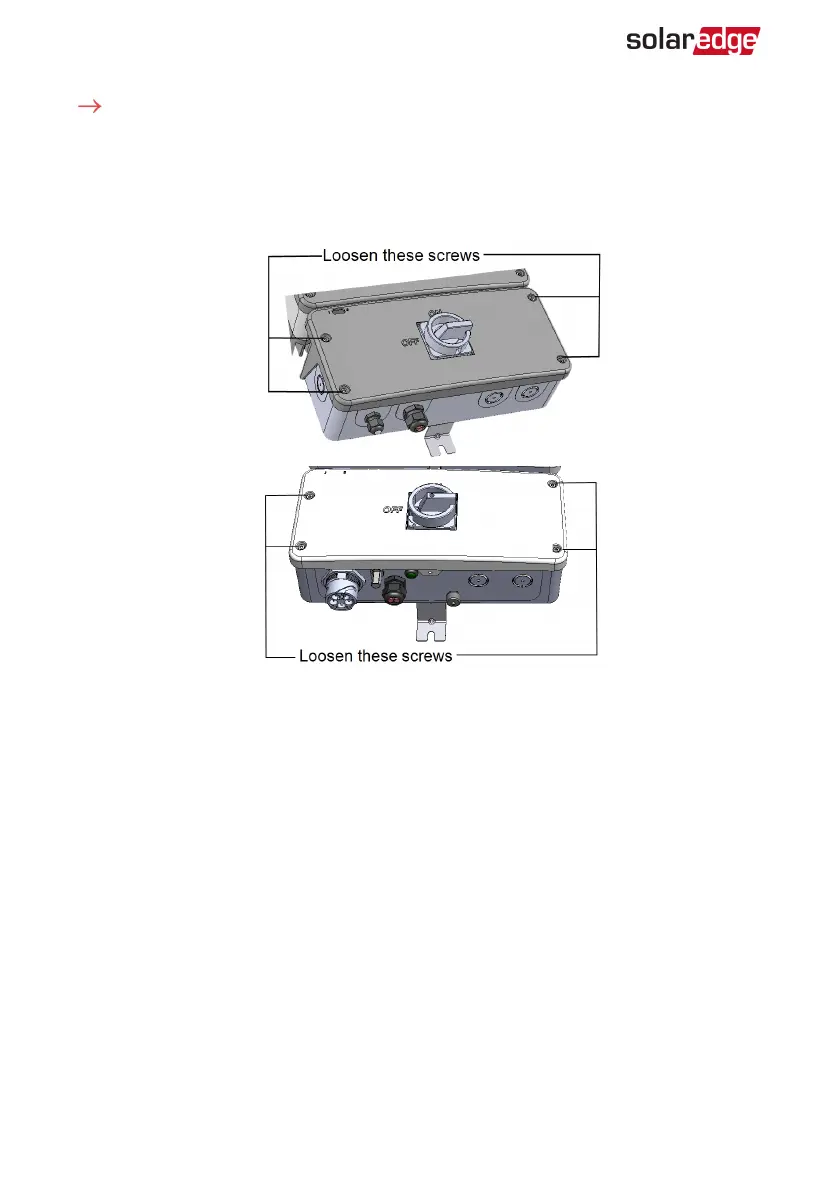

Figure 13: Opening the Connection Unit with Safety Switch cover
3. Remove the Connection Unit with Safety Switch cover.
4.
Open the required AC and DC conduit drill guides according to the conduits used in
the installation: The drill guides are located at the bottom and sides of the
enclosure, each with two sizes: ¾'' and 1''. Open the required drill guides, taking
care not to interfere with any of the internal components. It is recommended to use
a Unibit drill.
EV Charging Single Phase Inverter Guide MAN-01-00588-1.1
34 Opening Conduit Drill Guides

SolarEdge EV Series Specifications

General

AC Frequency	60 Hz
Protection Rating	IP65
AC Voltage	208/240 V
EV Charger Output Voltage	208/240 V
EV Charger Max. Output Current	32 A
Communication	Ethernet, Wi-Fi
Safety	UL1741
Operating Temperature Range	-25°C to 60°C
