SolarEdge Inline Energy Meter User Manual

Installing and Connecting the Inline Meter

NOTE
Make sure the inline meter's rating is within maximum permitted current
limitations.
In export/import applications, check that the rating of the main circuit breaker
is within maximum permitted current limitations.
Mounting the Inline Meter
To mount the inline meter on a DINrail:
The inline meter is designed for permanent installation in indoor locations. It is
intended for installation in switch cabinets or in small-installation distributors on a 35
mm mounting rail as per DIN EN 60715.

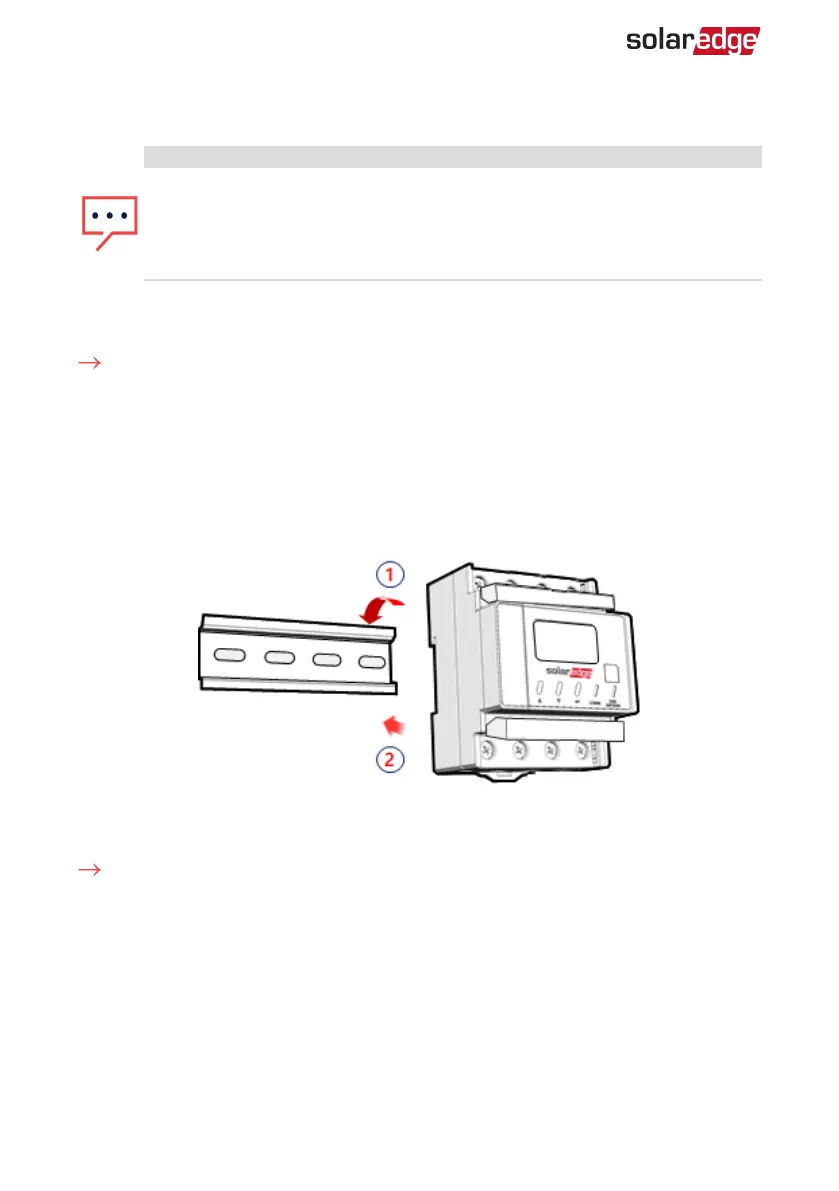

Mount the inline meter on the DIN rail as shown in the figure below. Fit the slot on the
back of the meter over the DINrail (see steps 1 and 2), and secure it in place on the
DINrail using the latching mechanism at the bottom of the meter.
Figure 8: Mounting the inline meter on a DIN-rail
To detach the inline meter from the DINrail:
1. Disconnect all AC wires and RS485 cable (if connected), or Energy Net antenna.
2. Detach the meter from the DIN rail by releasing the lever at the bottom of the meter,
and then separating it from the rail.
Inline Energy Meter with SolarEdge Energy Net Communications
16 Installing and Connecting the Inline Meter
