Metering Applications
The SolarEdge inverter reads data from the inline meter, typically using one of the
scenarios illustrated in the figures below:
Production metering, using a meter installed at the output power connection of the
inverter. Production metering functions (inverter production, external production,
site production) are supported in software version 4.14.xx and above.
Export/import metering, using a meter installed at the grid connection point
Consumption metering, using a meter installed at the load consumption point

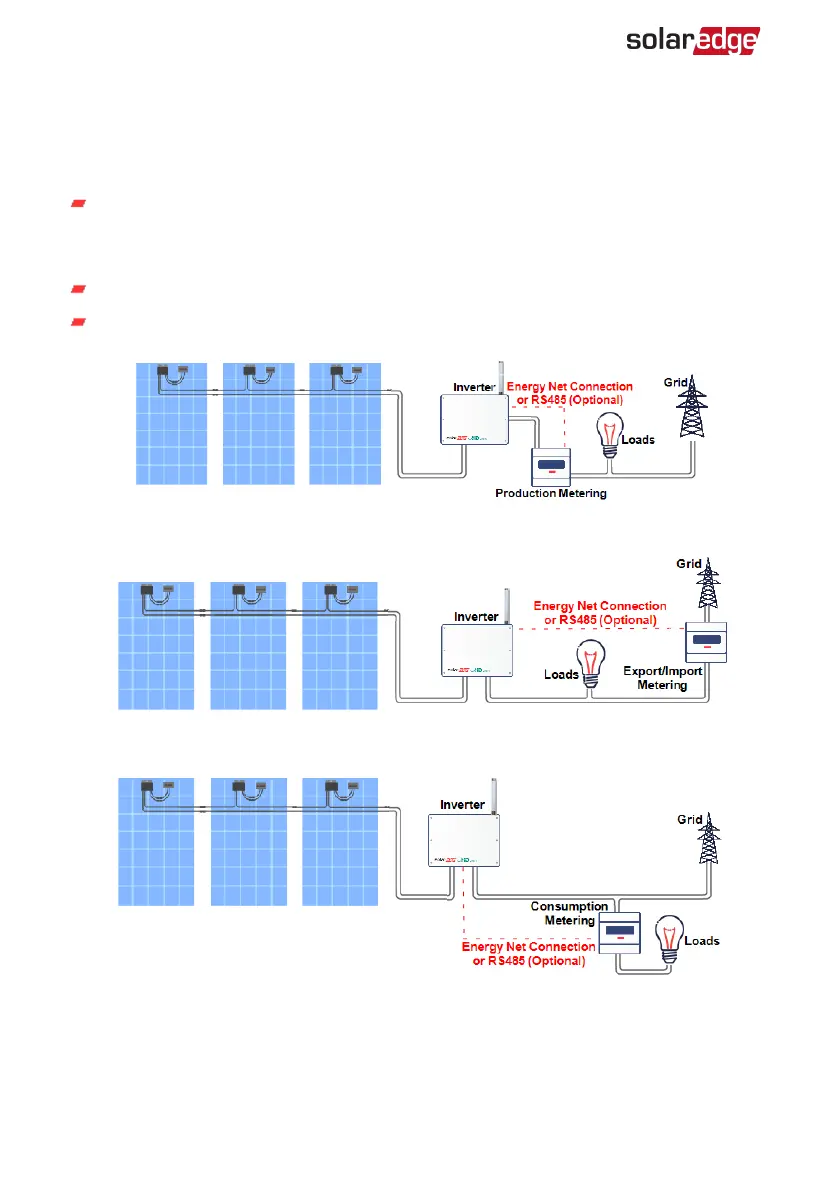

Figure 2: Typical installation with production meter
Figure 3: Typical installation with export/import meter
Figure 4: Typical installation with consumption meter
