SolarEdge Inline Energy Meter

Meter Connection Options
In a single inverter system, the inline meter is connected directly to an RS485 port of the
inverter, or communicates over a wireless SolarEdge Energy Net channel.
NOTE
Hereafter, when an RS485 connection is mentioned in this installation guide,
the user may opt alternatively to connect the inline meter to the inverter using
a wireless SolarEdge Energy Net connection (the inverter should support
Energy Net Communications).

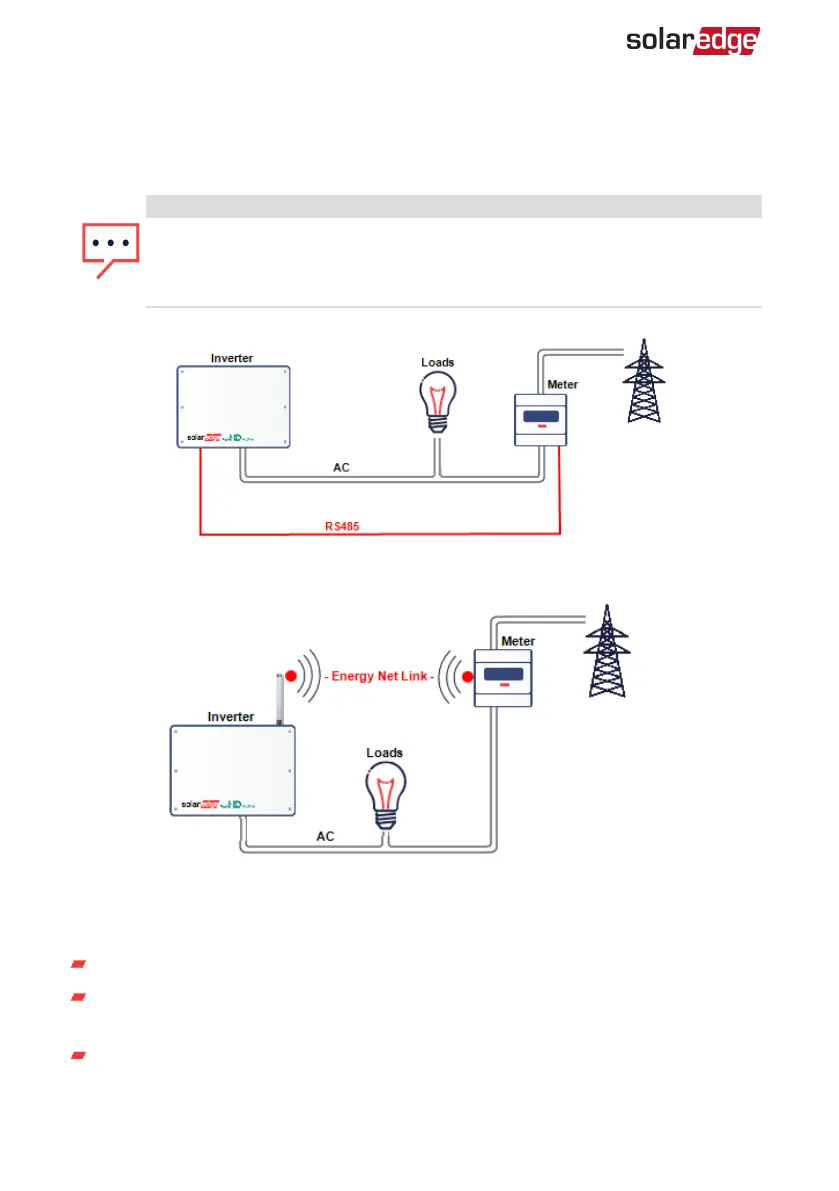

Figure 5: Single-inverter connection with export/import meter using RS485 link
Figure 6: Single-inverter connection with export/import meter using SolarEdge Energy Net
wireless link
In a multiple inverter system:
The inline meter is connected to an RS485 port of one of the inverters.
If the inverter has a second RS485 port, use this port to connect between the
inverters.
If the inverter has only one RS485 port, use an RS485 Plug-In (available from
SolarEdge) to connect the inverters.
Inline Energy Meter with SolarEdge Energy Net Communications
10 Meter Connection Options
