SolarEdge Inline Energy Meter User Manual

Installing the Three Phase Inline Meter
For Export/Import Metering Applications
3Ø Meter Wiring - Accuracy class B (1%) 3Ø Meter Wiring - Accuracy class A (2%)

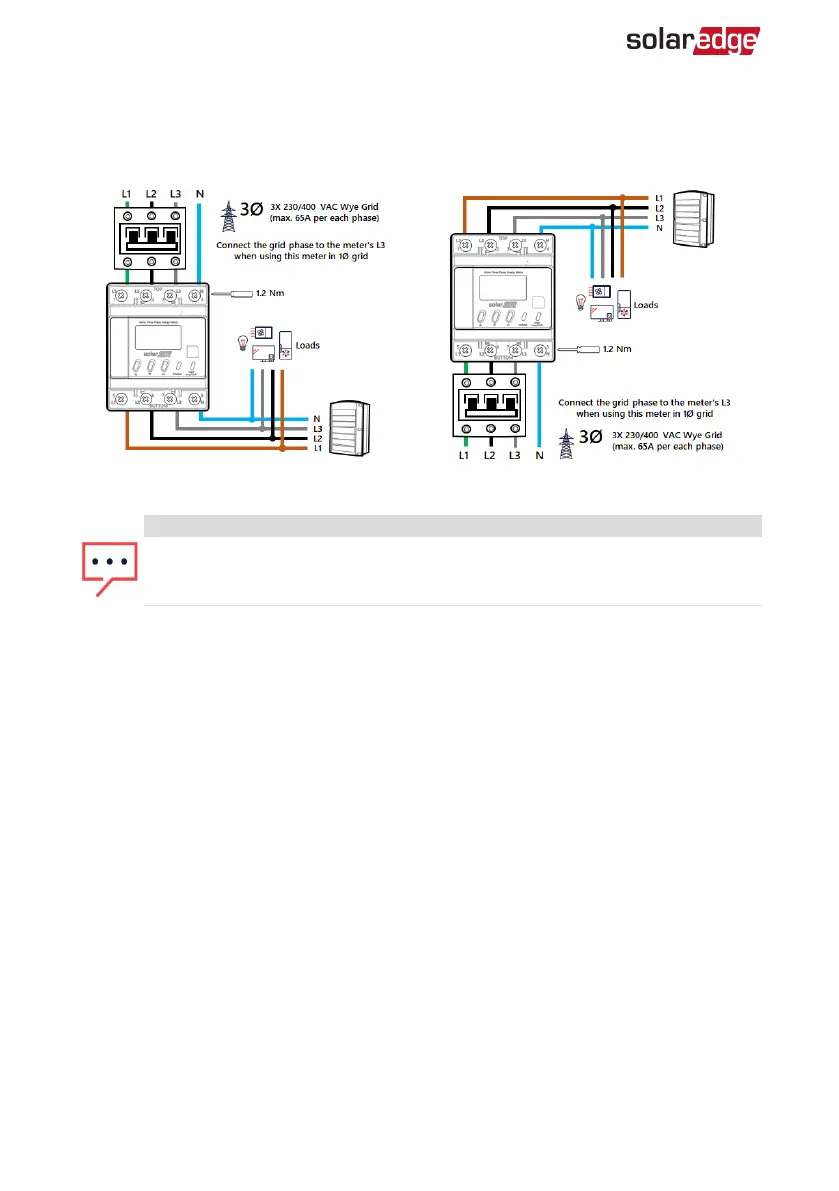

Figure 9: Export/Import Metering - Three Phase Wiring Schemes

NOTE
If the inline meter is connected to a single phase grid, connect phase 3 and N. The
two installation schemes depicted in the figure above are valid for single-phase grids
as well.
Inline Energy Meter with SolarEdge Energy Net Communications
18 Installing and Connecting the Inline Meter
