SolarEdge Inline Energy Meter User Manual

For Inverter Production, Site Production, and External Production Metering Applic-
ations
3Ø Meter Wiring - Accuracy class B (1%) 3Ø Meter Wiring - Accuracy class A (2%)





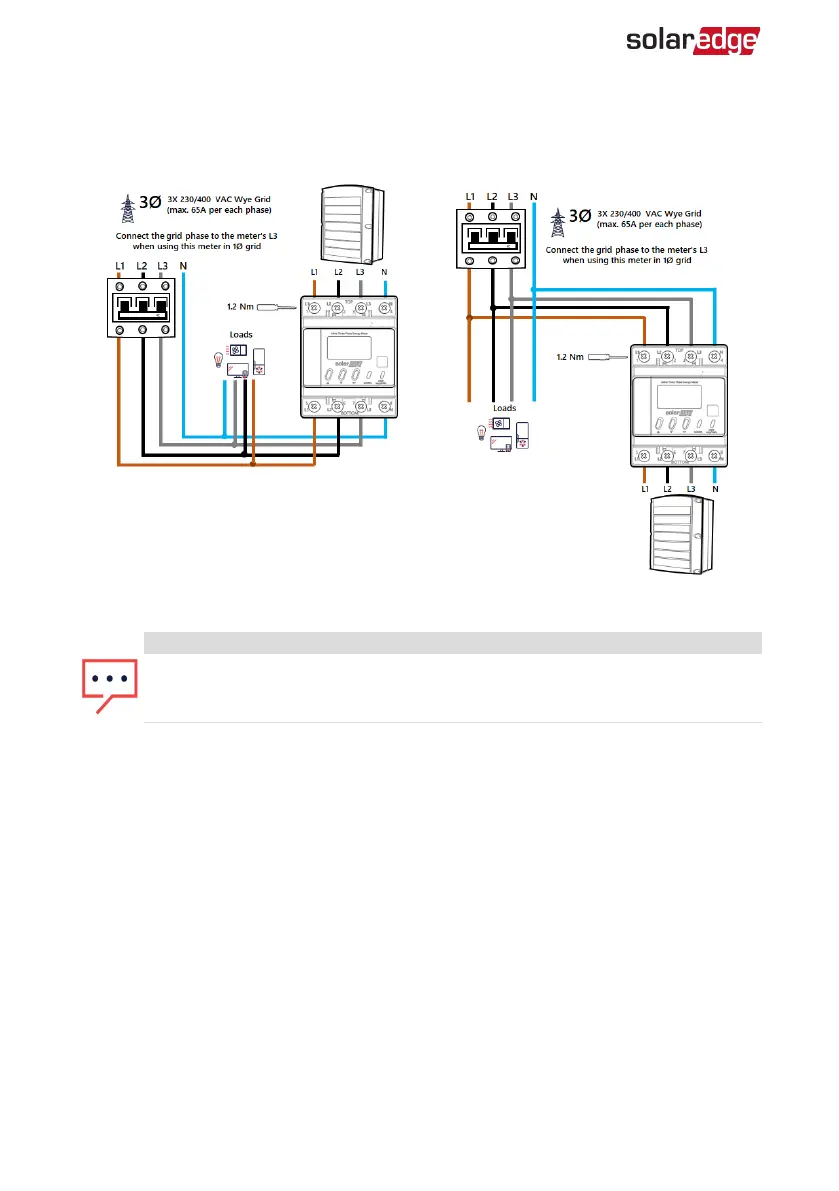

Figure 11: Production Metering - Three Phase Wiring Schemes

NOTE
If the inline meter is connected to a single phase grid, connect phase 3 and N. The
two installation schemes depicted in the figure above are valid for single-phase grids
as well.
Inline Energy Meter with SolarEdge Energy Net Communications
20 Installing and Connecting the Inline Meter
