SolarEdge L10US-IB20 - Figure 2 Rear View (Terminal Block Without Cover) of L10 US, L15 US and L20 US; Table 2 Cabinet Overview

10
L10US-IB20, L10US-IB40, L10US-IB60 L10US-IB00, L15US-IB40, L15US-IB60 L15US-
IB00, L20US-IB60, L20US-IB00 UPS

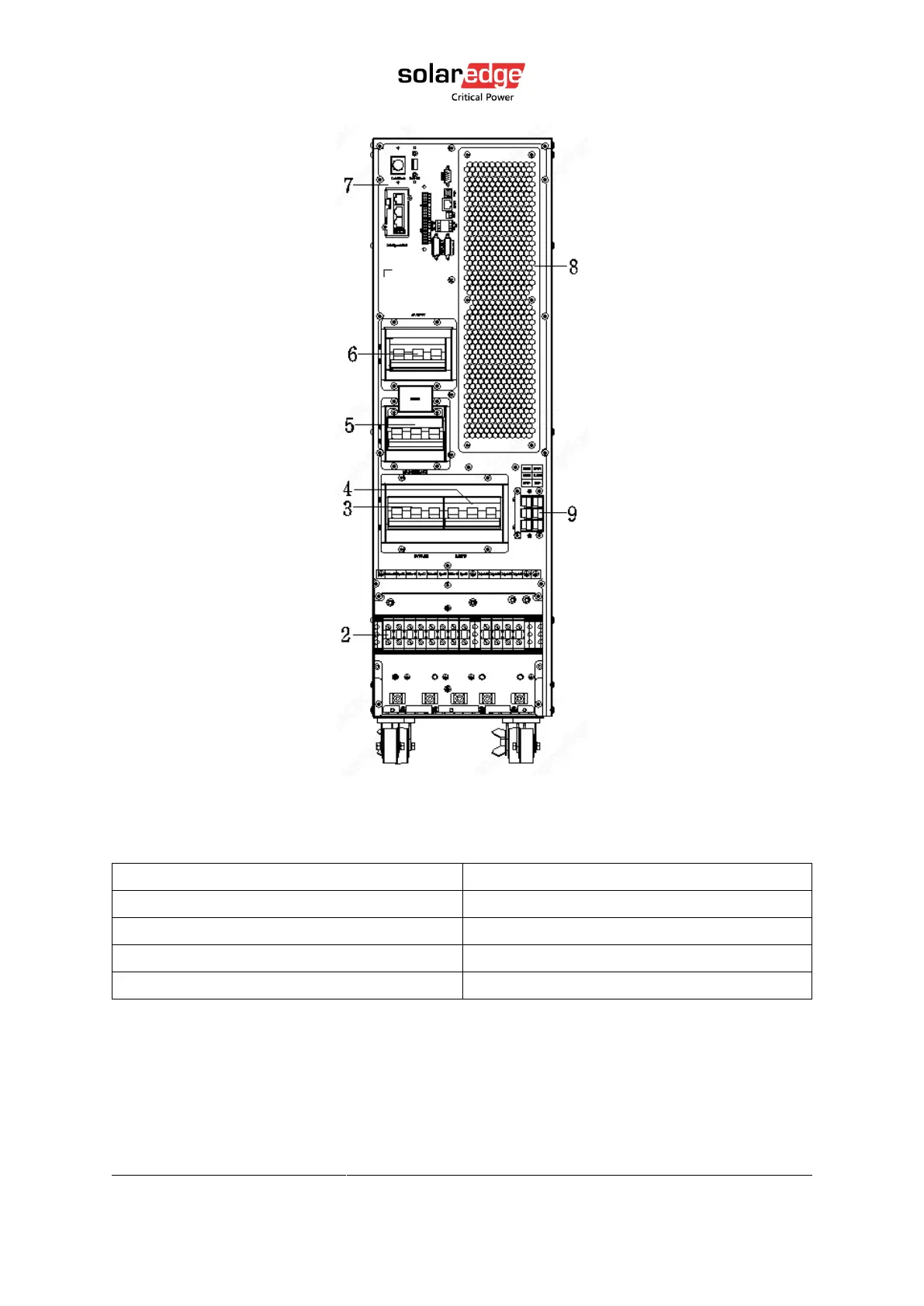

Figure 2 Rear View (terminal block without cover) of L10US, L15US and L20US
Table 2 Cabinet overview
(1) LCD panel
(2) Terminal block for Input, output & GND
(3) Bypass Switch
(4) Mains Switch
(5) Maintenance switch & its cover
(6) Output switch
(7) Communication panel
(8) Rear cover
(9) Terminal block for battery
