L10US-IB20, L10US-IB40, L10US-IB60 L10US-IB00, L15US-IB40, L15US-IB60 L15US-
IB00, L20US-IB60, L20US-IB00 UPS

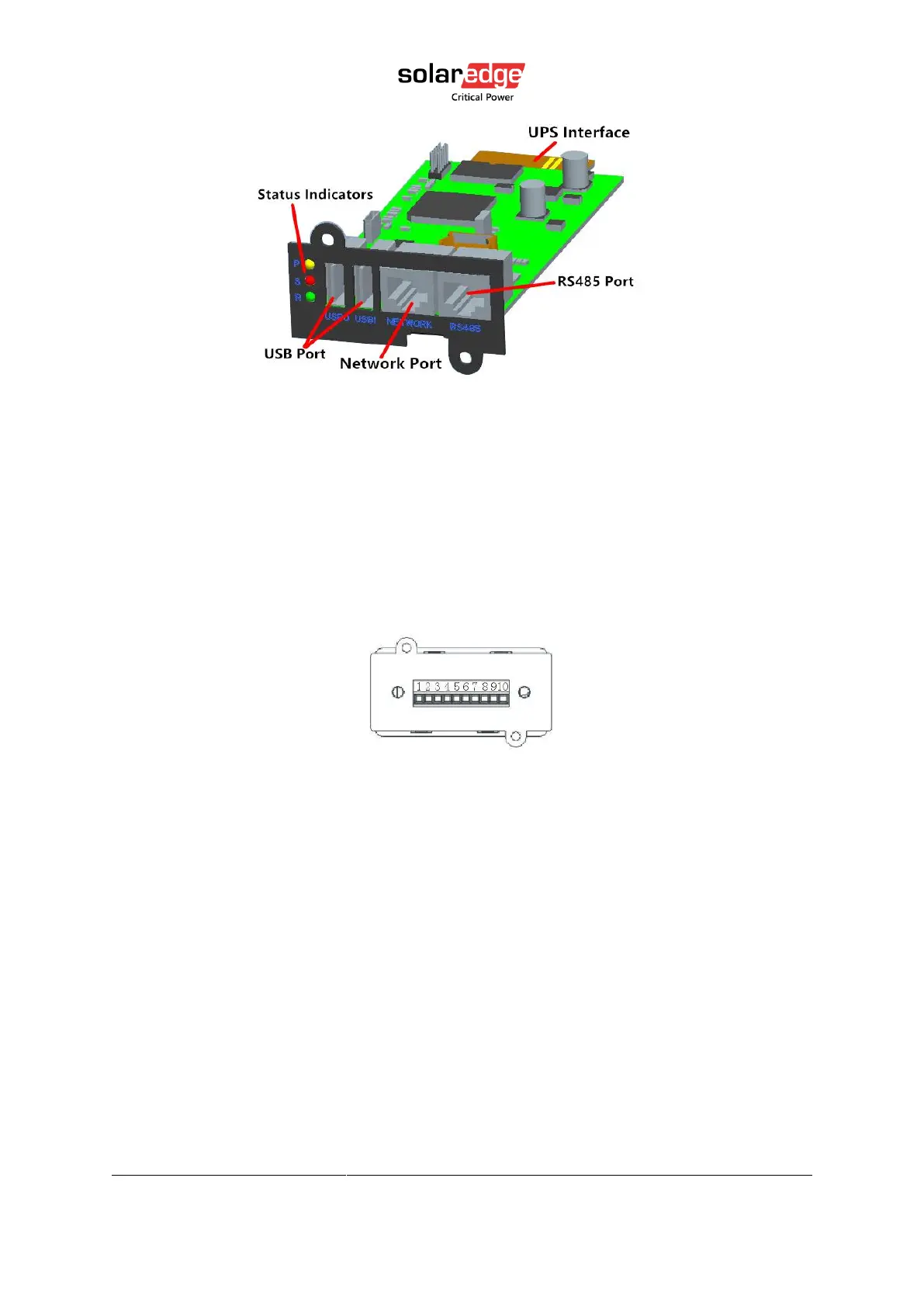

Figure 20 SNMP card
4.5.2. Relay card
A 10-pin terminal is supported to offer the signals of Bypass, Utility Failure, Inverter On,
Battery Low, UPS fault, UPS Alarm, and UPS Shutdown.
The relay communication card contains six dry contact outputs and one dry input. The inputs
and outputs are factory programmed according to functions listed in the Table.
Figure 21 Relay contacts (dry contact card)
