SolarEdge L10US-IB20 - Figure 22 Relay Overview; Table 9 Relay Contacts (Communication Card)

64
L10US-IB20, L10US-IB40, L10US-IB60 L10US-IB00, L15US-IB40, L15US-IB60 L15US-
IB00, L20US-IB60, L20US-IB00 UPS

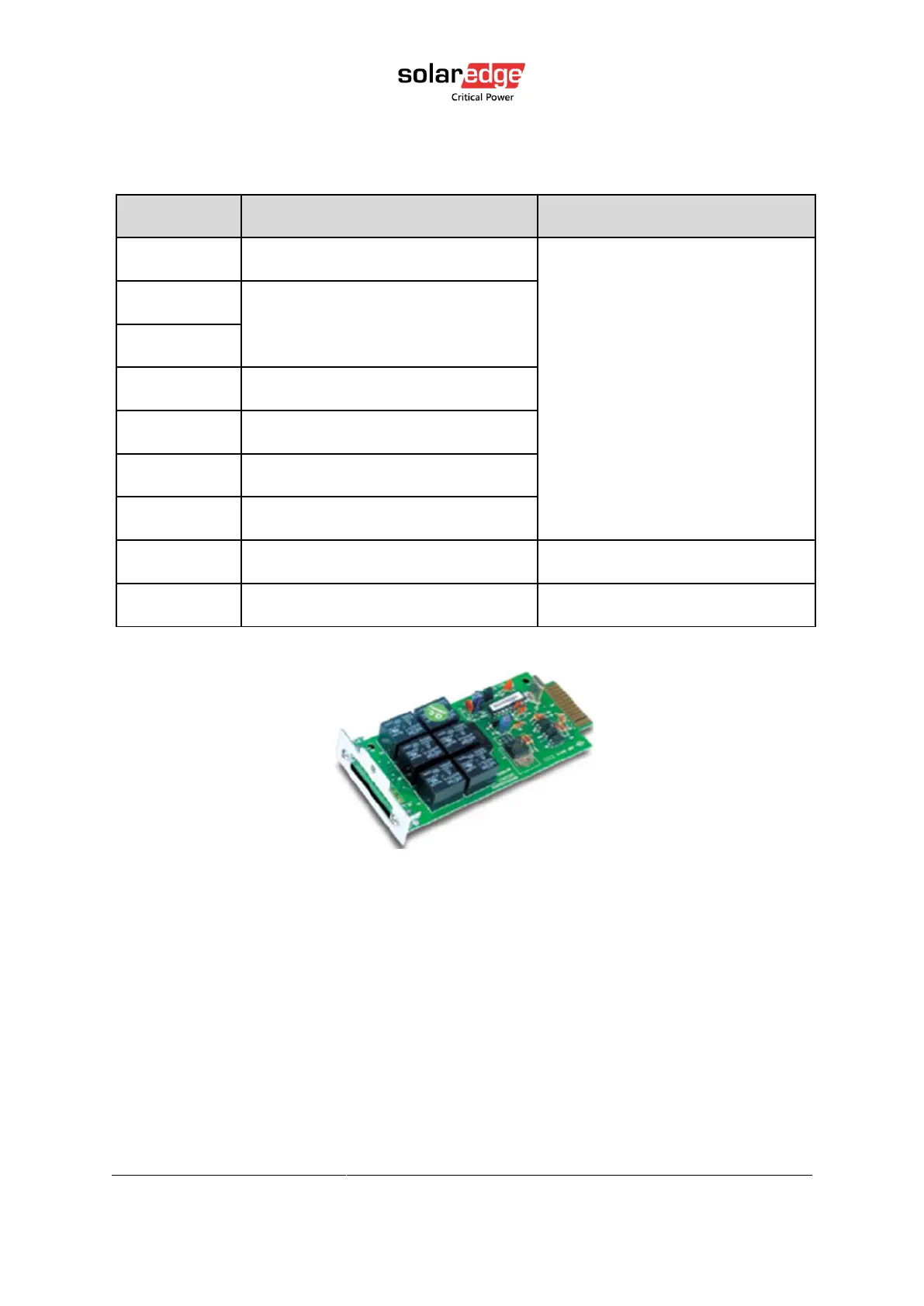

Table 9 Relay contacts (communication card)
Figure 22 Relay overview
Pin
Function Description
Input or Output
1
Utility Failure
Output
2
Battery Low
3
4
Bypass On
5
UPS Fault
6
Inverter On
7
Summary Alarm
8
common
9
Remote Shutdown +
Input (5~12V)
