2.

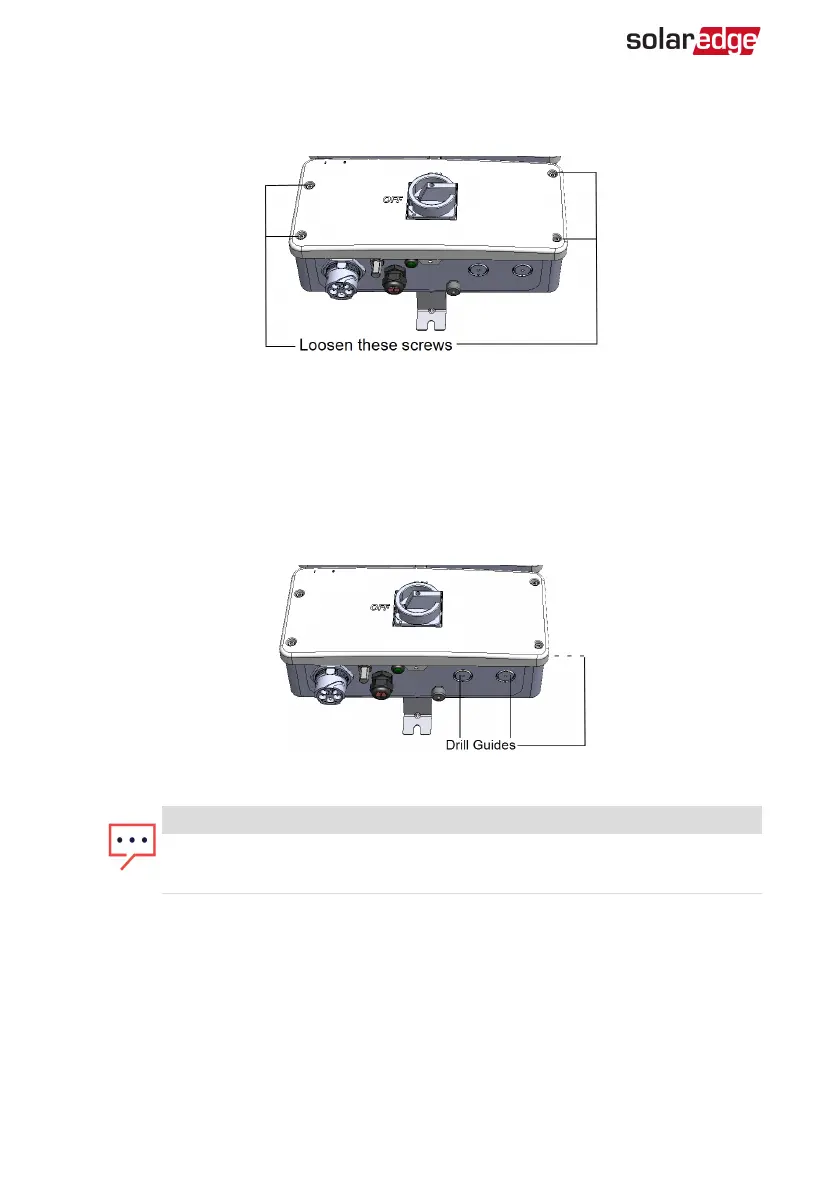

Loosen the screws on the front cover of the Connection Unit with Safety Switch, as
shown below:
Figure 8: Opening the Connection Unit with Safety Switch cover
3. Remove the Connection Unit with Safety Switch cover.
4.
Open the required AC and DC conduit drill guides according to the conduits used in
the installation: The drill guides are located at the bottom and sides of the
enclosure, each with a maximum size of 25 mm. Open the required drill guides,
taking care not to interfere with any of the internal components. It is recommended
to use a Unibit drill.
Figure 9: Connection Unit with Safety Switch drill guides
NOTE
Unused conduit openings and glands should be sealed with appropriate
seals.
EV Charging Single Phase Inverter MAN-01-00629-1.2
27 Opening Conduit Drill Guides
