Communication Connectors
A communication gland with multiple openings is used for connection of the various
communication options. The table below describes the functionality of each gland
opening. Unused openings should remain sealed.
Opening for cable size (diameter) Connection type
2.5 - 5 mm RS485
4.5 - 7 mm, with cut Ethernet (CAT5/6)
2 - 4 mm, with cut
Antenna cable for wireless
communication

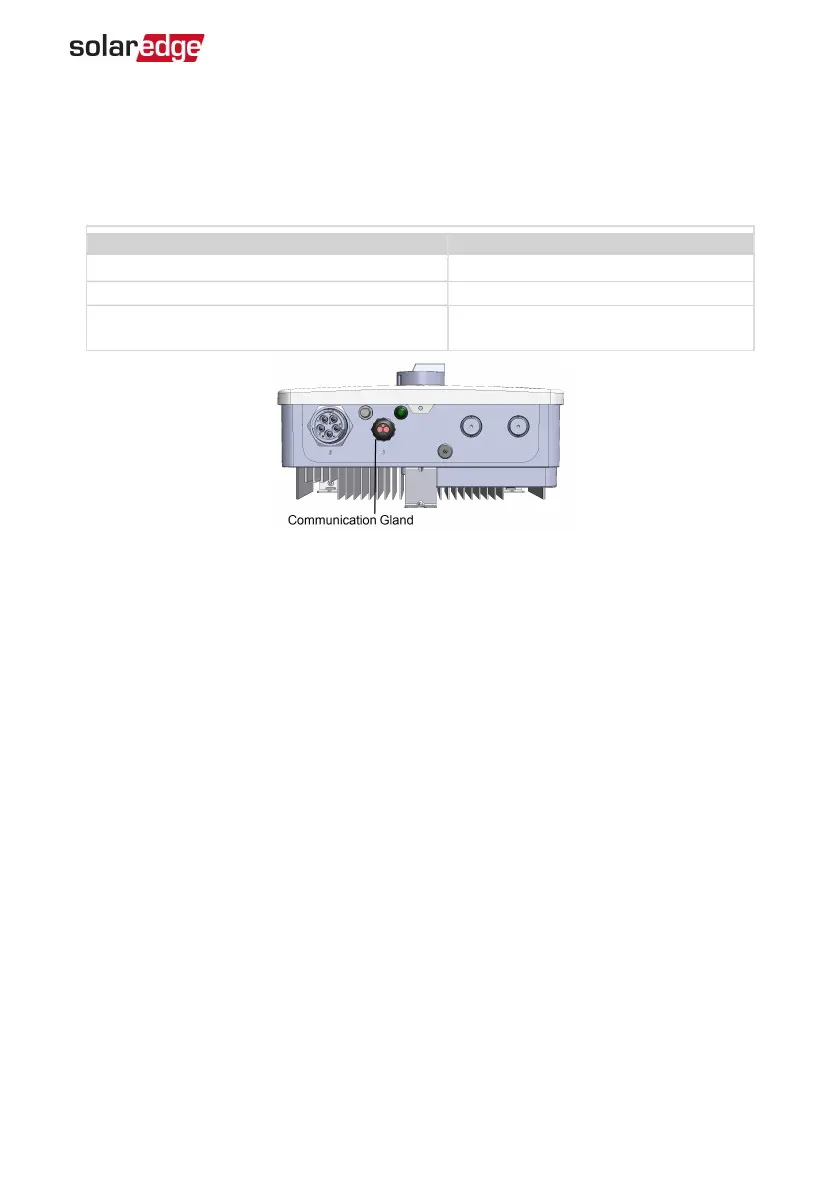

Figure 17: Communication Gland
Chapter 6: Setting Up Communication to the Monitoring Platform 54
