Buzzer
The EV charger includes a buzzer with the following indications:
Event Buzzer Indication
Connected to EV 1 short beep
Charging starts 2 short beeps + 1 long beep
Error 5 beeps
DIPSwitches
Set the circuit breaker rating DIP switches as shown in the following figure.

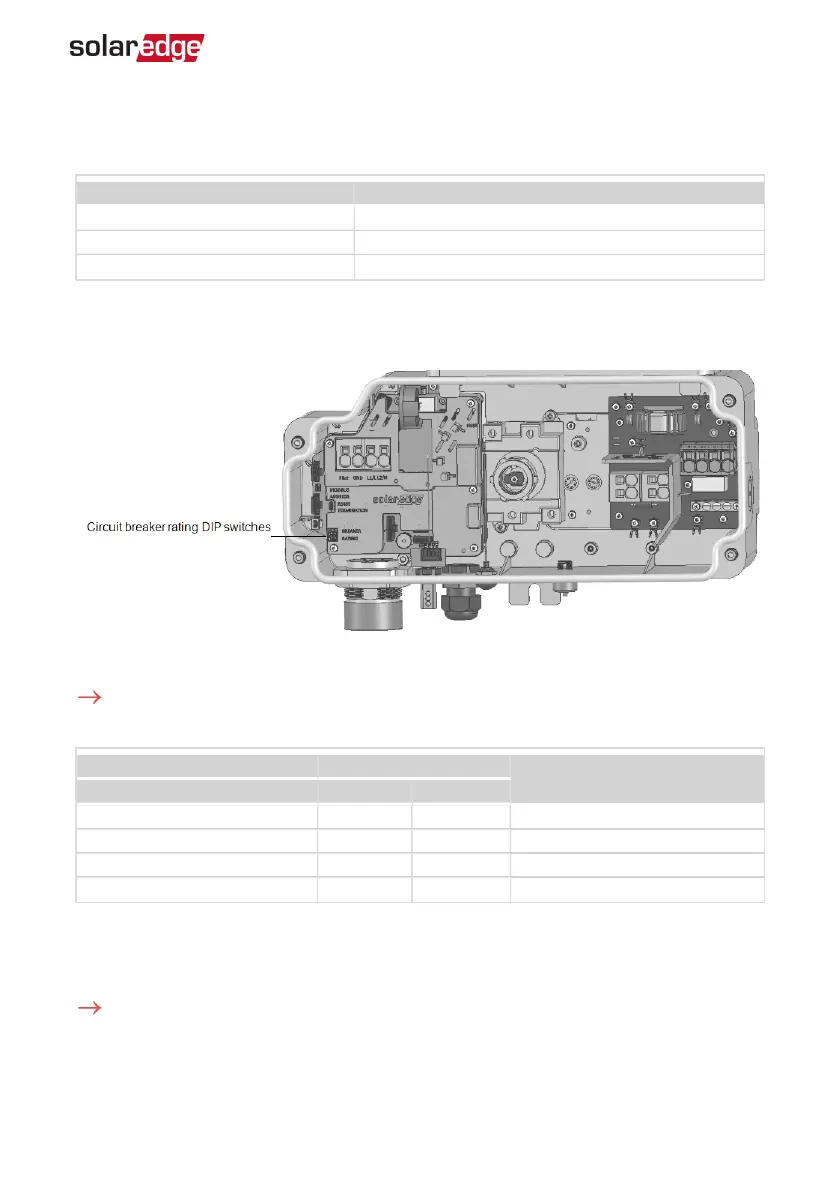

Figure 7: Connection Unit with Safety Switch with EV Charger internal interfaces
To set the circuit breaker ratings:
Use the circuit breaker rating DIP switches to set circuit breaker ratings.
Circuit Breaker Rating DIPSwitch Settings
Maximum Allowed
AC Current from Grid
1 (left) 2 (right)
16 A OFF OFF 16 A
20 A ON OFF 20 A
25 A OFF ON 25 A
32 A ON ON 32 A
Opening Conduit Drill Guides
This step may be performed before or after mounting the inverter.
To open conduit drill guides:
1. Move the Connection Unit with Safety Switch ON/OFF/P switch and the inverter
ON/OFF/P switch to OFF.
