a.
Mark the location of the bracket screw for the Connection Unit with Safety
Switch, and optionally the two additional bracket holes.

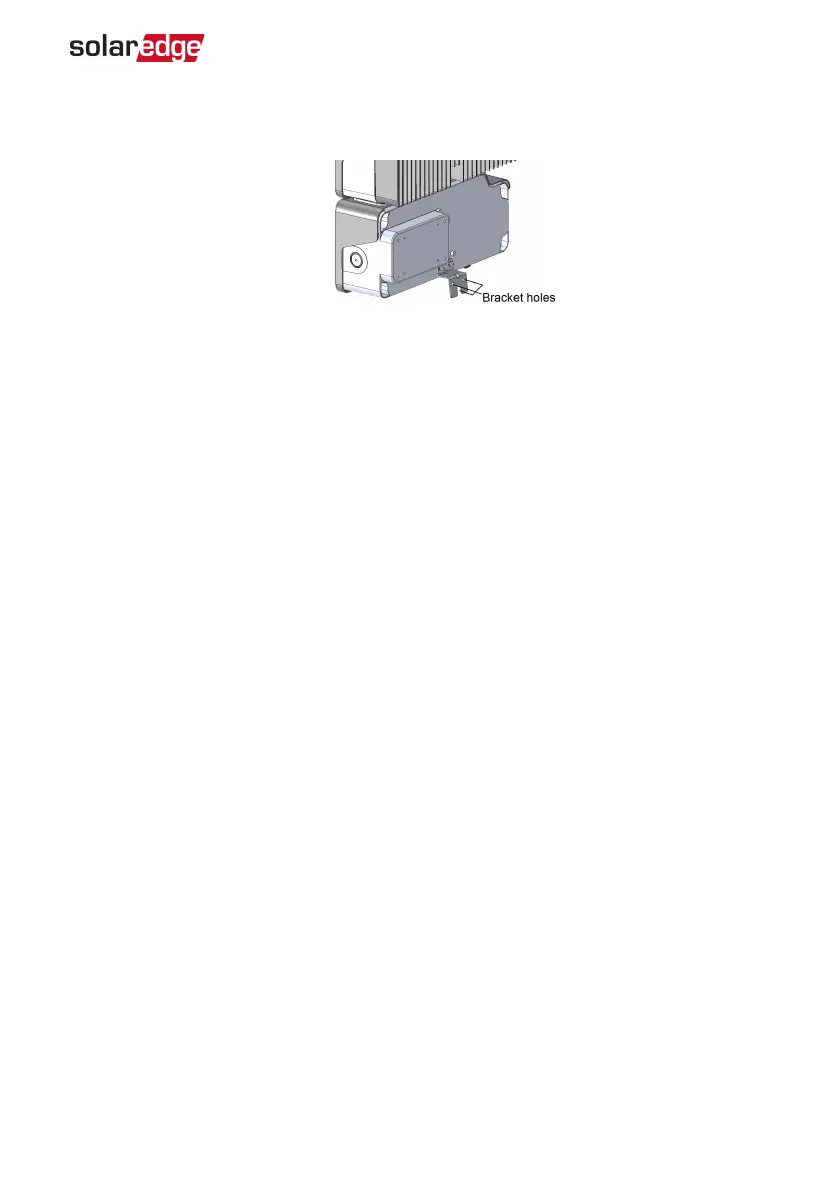

Figure 13: Connection Unit with Safety Switch bracket
b. Remove the inverter from the wall/ pole.
c. Drill the hole for the Connection Unit with Safety Switch bracket.
d. Hang the inverter on the mounted brackets.
e. Fasten the Connection Unit with Safety Switch bracket using a standard bolt.
7. Insert the screws at the top of the inverter brackets and fasten the brackets together.
8. Verify that all the brackets are firmly attached to the mounting surface.
Chapter 3: Installing the Inverter 30
EV Charging Single Phase Inverter MAN-01-00629-1.2
