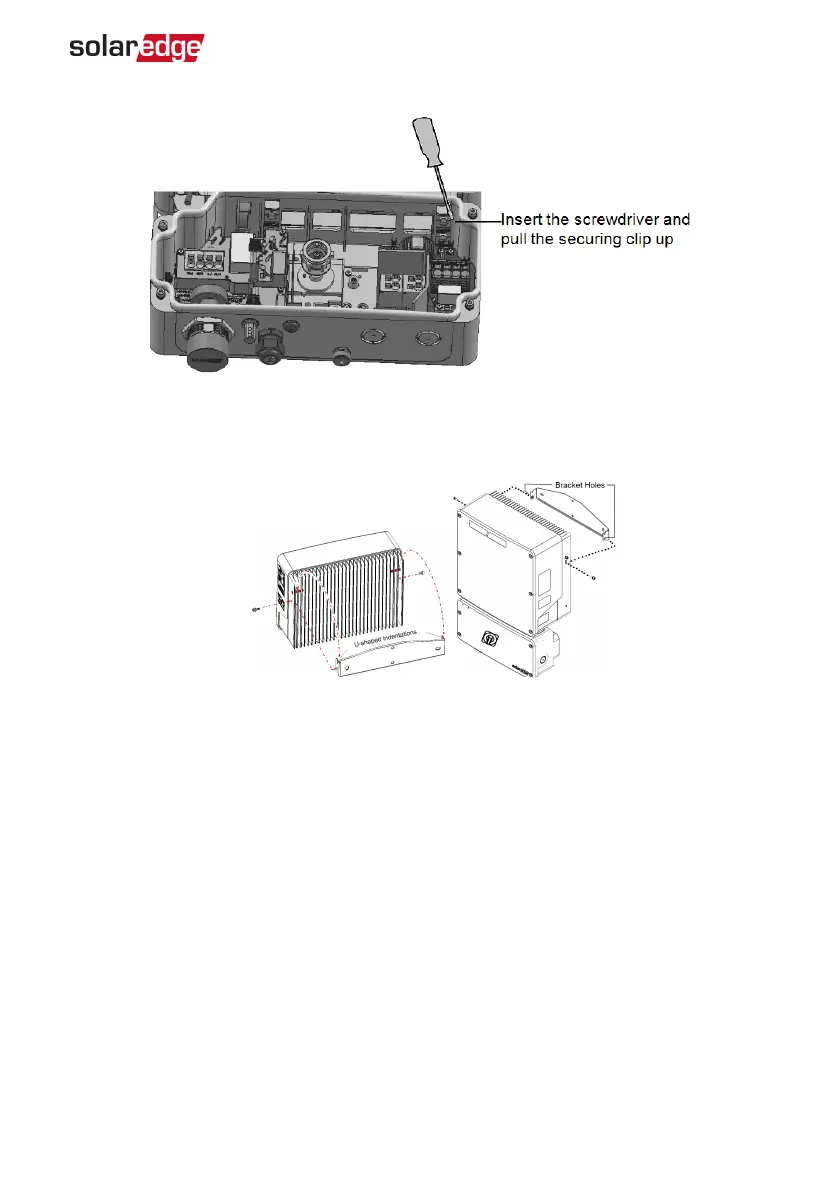

Figure 26: Disconnecting the Connection Unit with Safety Switch from the inverter
9.
Remove the screws securing the inverter to the mounting brackets and lift the
inverter from the mounting bracket.
Figure 27: Mounting brackets
Appendix A: Replacing and Adding System Components 74
EV Charging Single Phase Inverter MAN-01-00629-1.2
