SolarEdge SE5K User Manual

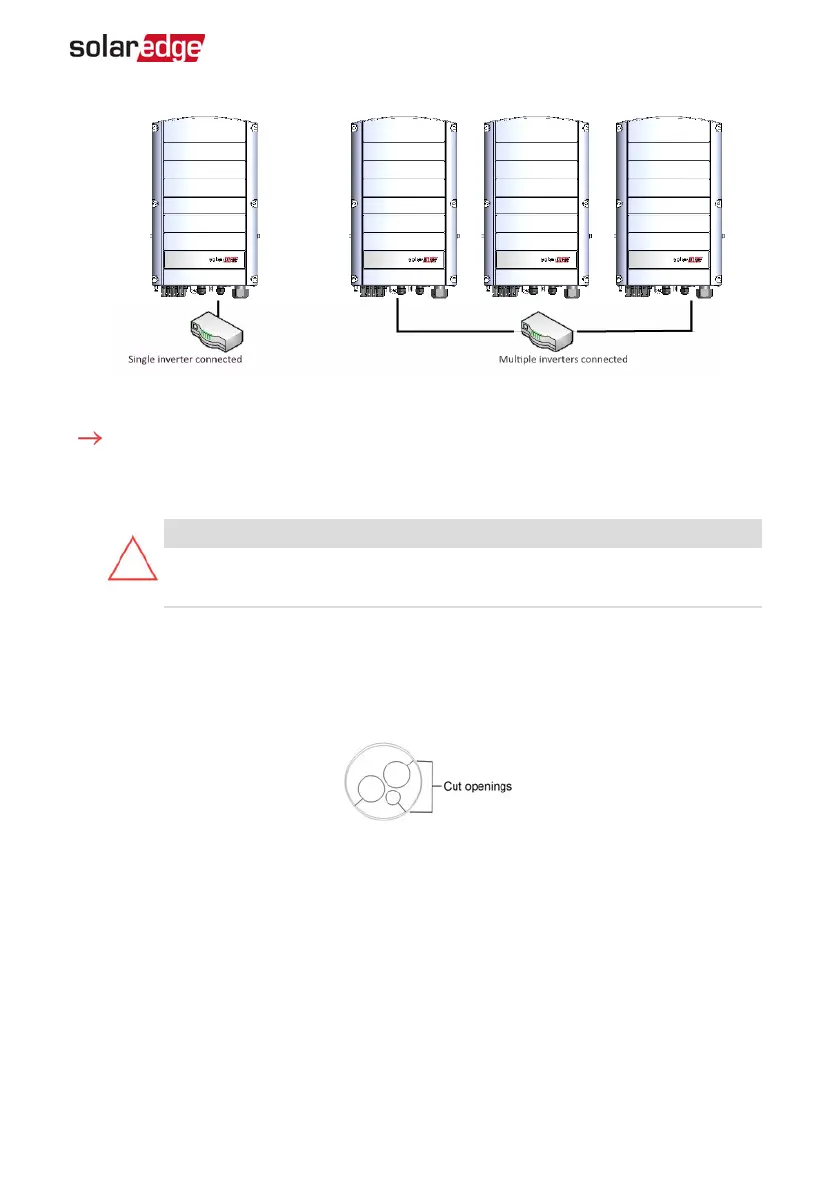

Figure 19: Example of Ethernet connection
To connect the Ethernet cable:
1. Remove the inverter cover .
2.
Open the communication gland #1.
CAUTION!
The gland includes a rubber waterproof fitting, which should be used to
ensure proper sealing.
3. Remove the plastic seal from one of the large opening .
4. Remove the rubber fitting from the gland and insert the CAT5/6 cable through the
gland and through the gland opening in the inverter .
5.
Push the cable into the cut opening of the rubber fitting.
Figure 20: Rubber fitting
CAT5/6 standard cables have eight wires (four twisted pairs), as shown in the diagram
below. Wire colors may differ from one cable to another. You can use either wiring
standard, as long as both sides of the cable have the same pin-out and color-coding.
Chapter 6: Setting Up Communication 53
Three Phase System Installation Guide MAN-01-00505-1.2

SolarEdge SE5K Specifications

General

Model	SE5K
Manufacturer	SolarEdge
AC Output Power	5000 W
Rated AC Power	5000 W
Max. Efficiency	98.3%
Cooling	Natural convection
Protection Rating	IP65
Max. Input DC Voltage	480 V
Max. Input Current	11 A
Number of MPP Trackers	1
Warranty	12 years
Communication Interfaces	RS485, Ethernet
AC Voltage	230 V
Operating Temperature Range	-25°C to +60°C
MPPT Voltage Range	330-480V
