SolarEdge SE5K User Manual

Connecting the Strings to the Inverter
Connect the string to the DC input pairs. If required, connect additional strings in
parallel using an external combiner box/branch cables before connecting to the
inverter.
NOTE
Functional electrical earthing of DC-side negative or positive poles is prohibited
because the inverter has no transformer. Grounding (earth ground) of module
frames and mounting equipment of the PV array modules is acceptable.
NOTE
SolarEdge’s fixed input voltage architecture enables the parallel strings to be of
different lengths. Therefore, they do not need to have the same number of
power optimizers, as long as the length of each string is within the permitted
range.
Connect the DC connectors of each string to the DC+ and DC- connectors .
 

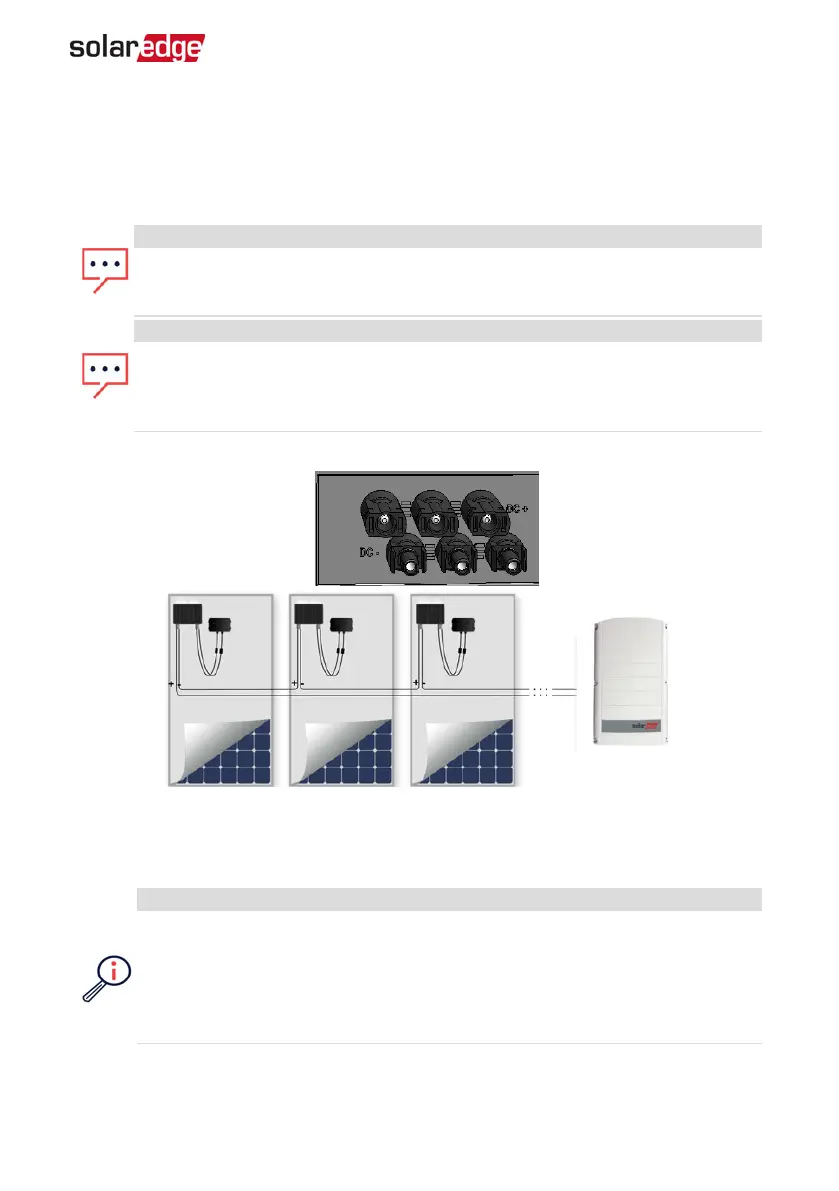

Figure 16: Inverter DC Connections
Selecting a Residual Current Device (RCD)
 IMPORTANTSAFETYFEATURE
All SolarEdge inverters incorporate a certified internal Residual Current Device
(RCD) in order to protect against possible electrocution and fire hazard in case
of a malfunction in the PV array, cables or inverter. There are 2 trip thresholds
for the RCD as required for certification (DIN VDE 0126-1-1). The default value
for electrocution protection is 30 mA, and for slow rising current is 300 mA.
Chapter 4: Connecting the AC and the Strings to the Inverter 33
Three Phase System Installation Guide MAN-01-00505-1.2

SolarEdge SE5K Specifications

General

Model	SE5K
Manufacturer	SolarEdge
AC Output Power	5000 W
Rated AC Power	5000 W
Max. Efficiency	98.3%
Cooling	Natural convection
Protection Rating	IP65
Max. Input DC Voltage	480 V
Max. Input Current	11 A
Number of MPP Trackers	1
Warranty	12 years
Communication Interfaces	RS485, Ethernet
AC Voltage	230 V
Operating Temperature Range	-25°C to +60°C
MPPT Voltage Range	330-480V
