SolarEdge SE5K User Manual

Communication Connectors
Two communication glands are used for connection of the various communication
options. Each gland has three openings. The table below describes the functionality of
each opening. Unused openings should remain sealed.
Gland# Opening Functionality Cable size (diameter)
1 (PG16)
One small External antenna cable 2-4 mm
Two large
Ethernet connection
(CAT5/6), Cellular, ZigBee,
or Wi-Fi
4.5-7 mm
2 (PG13.5) All three RS485, power reduction 2.5-5 mm

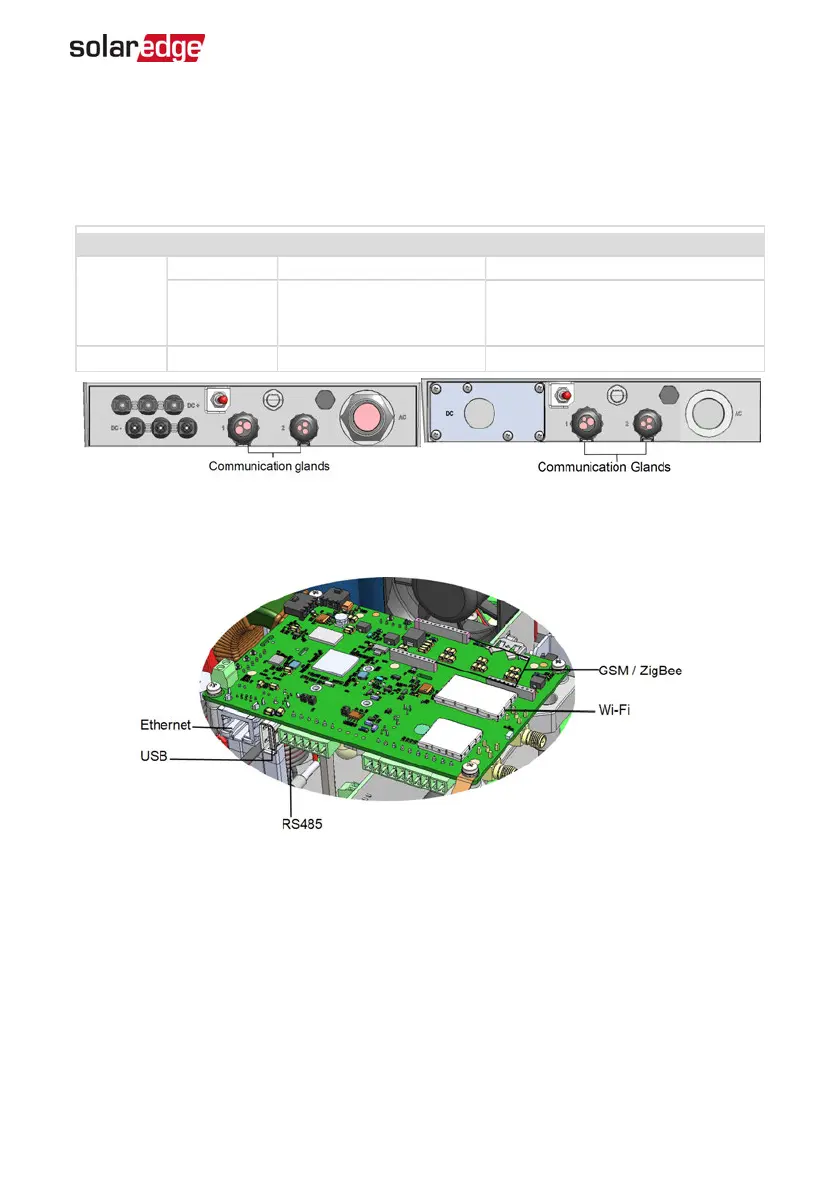

Figure 17: Communication Glands
The communication board has a standard RJ45 terminal block for Ethernet connection,
and a 6-pin terminal block for RS485 connection, as shown below:
Figure 18: Internal connectors
Chapter 6: Setting Up Communication 51
Three Phase System Installation Guide MAN-01-00505-1.2

SolarEdge SE5K Specifications

General

Model	SE5K
Manufacturer	SolarEdge
AC Output Power	5000 W
Rated AC Power	5000 W
Max. Efficiency	98.3%
Cooling	Natural convection
Protection Rating	IP65
Max. Input DC Voltage	480 V
Max. Input Current	11 A
Number of MPP Trackers	1
Warranty	12 years
Communication Interfaces	RS485, Ethernet
AC Voltage	230 V
Operating Temperature Range	-25°C to +60°C
MPPT Voltage Range	330-480V
