SolarEdge SE5K User Manual

Appendix G: Determining the Circuit Breaker
Size
Revision History
Version 1.0 February 2019: first release
Introduction
Inverters should be protected by circuit breakers. This document describes how to
determine which circuit breaker to use in three phase commercial installations.
Using Transformers in Commercial Three Phase
Inverter Installations
Using transformers in a commercial installation is optional. In most cases a transformer
is used to connect the installation to the medium voltage power grid. The following
figure illustrates a typical transformer and commercial three phase inverter installation
topology.

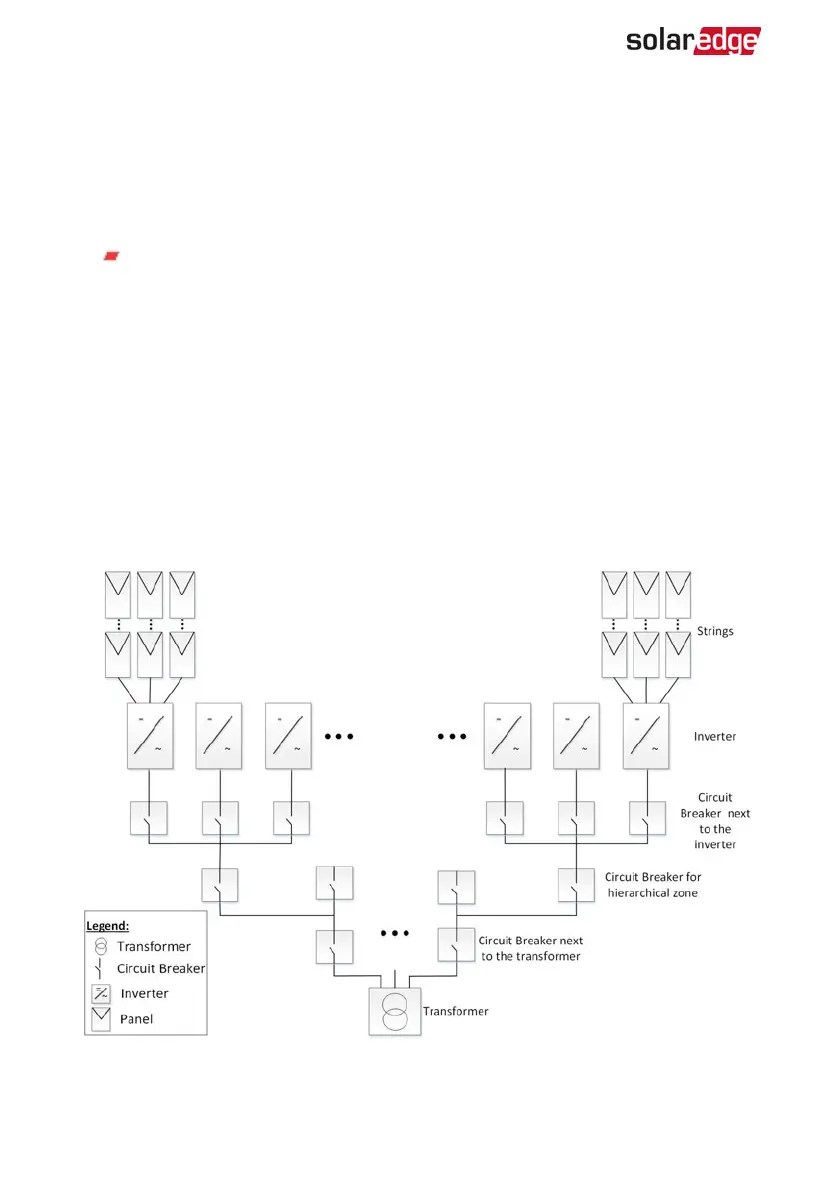

Figure 44: Typical transformer and commercial three phase inverter installation topology
-Three Phase System Installation Guide MAN-01-00505-1.2
82 Appendix G: Determining the Circuit Breaker Size

SolarEdge SE5K Specifications

General

Model	SE5K
Manufacturer	SolarEdge
AC Output Power	5000 W
Rated AC Power	5000 W
Max. Efficiency	98.3%
Cooling	Natural convection
Protection Rating	IP65
Max. Input DC Voltage	480 V
Max. Input Current	11 A
Number of MPP Trackers	1
Warranty	12 years
Communication Interfaces	RS485, Ethernet
AC Voltage	230 V
Operating Temperature Range	-25°C to +60°C
MPPT Voltage Range	330-480V
