Use the arrow keys and to display any value. Use the key to switch back
to the main menu.
Settings
The following settings can be implemented via the graphics display:
Language Language selection: German, English, French, Italian or
Spanish
Time Internal clock setting
Date Current date setting
Device address Enter a device address between 1 and 249. If several
inverters are connected to form a network, each device
must have a different address.
Ethernet Switches the Ethernet interface on or off
IP address Ethernet interface configuration (see section 6)
Netmask Ethernet interface configuration (see section 6)
TCP port Ethernet interface configuration (see section 6)
Status relay Defines the function of the status signalling contact (see
Section 2.9)
Status relay delay Delay time setting for the status signalling contact

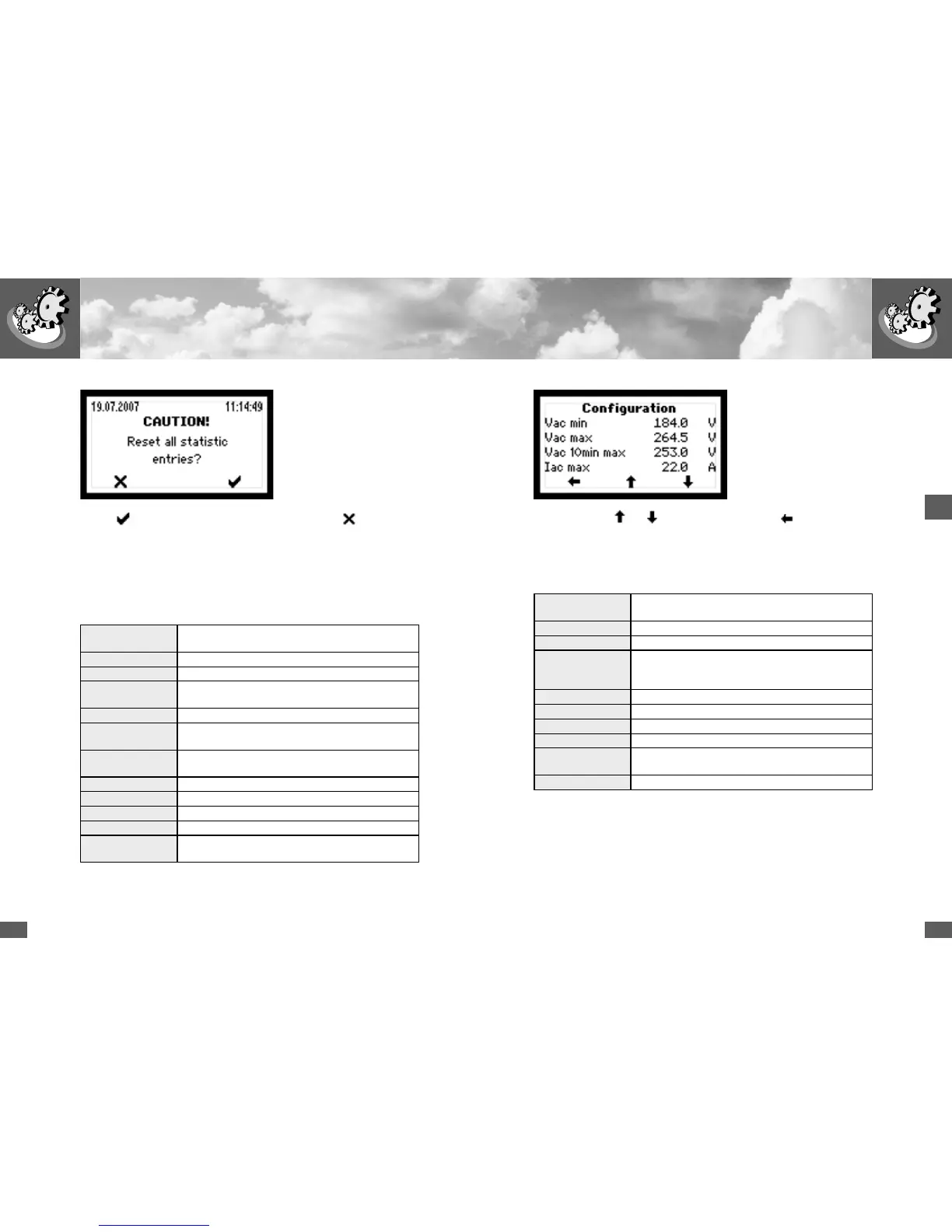

Use the
key to confirm resetting of all statistics. Use the key to exit the
menu without resetting the statistics.
Configuration
The following limit values and operating parameters cannot be modified via
the graphics display, because they are part of the country-specific settings (see
also section 2.6).
Country The installation country set during commissioning is
displayed here
Vac min Minimum permissible mains voltage
Vac max Maximum permissible mains voltage
Vac 10min max Maximum permissible mean value of the mains voltage
over the last 10 minutes
Iac max Maximum mains current
Ierr max Maximum permissible fault current (rms value) on the
DC side
Iac mean max Maximum permissible DC component of fed-in mains
current
Pac max Maximum AC output that can be fed in
f max Maximum permissible mains frequency
f min Minimum permissible mains frequency
Restart delay Grid feeding delay after disconnection from the mains
df/dt max Maximum permissible mains frequency variation per
second
