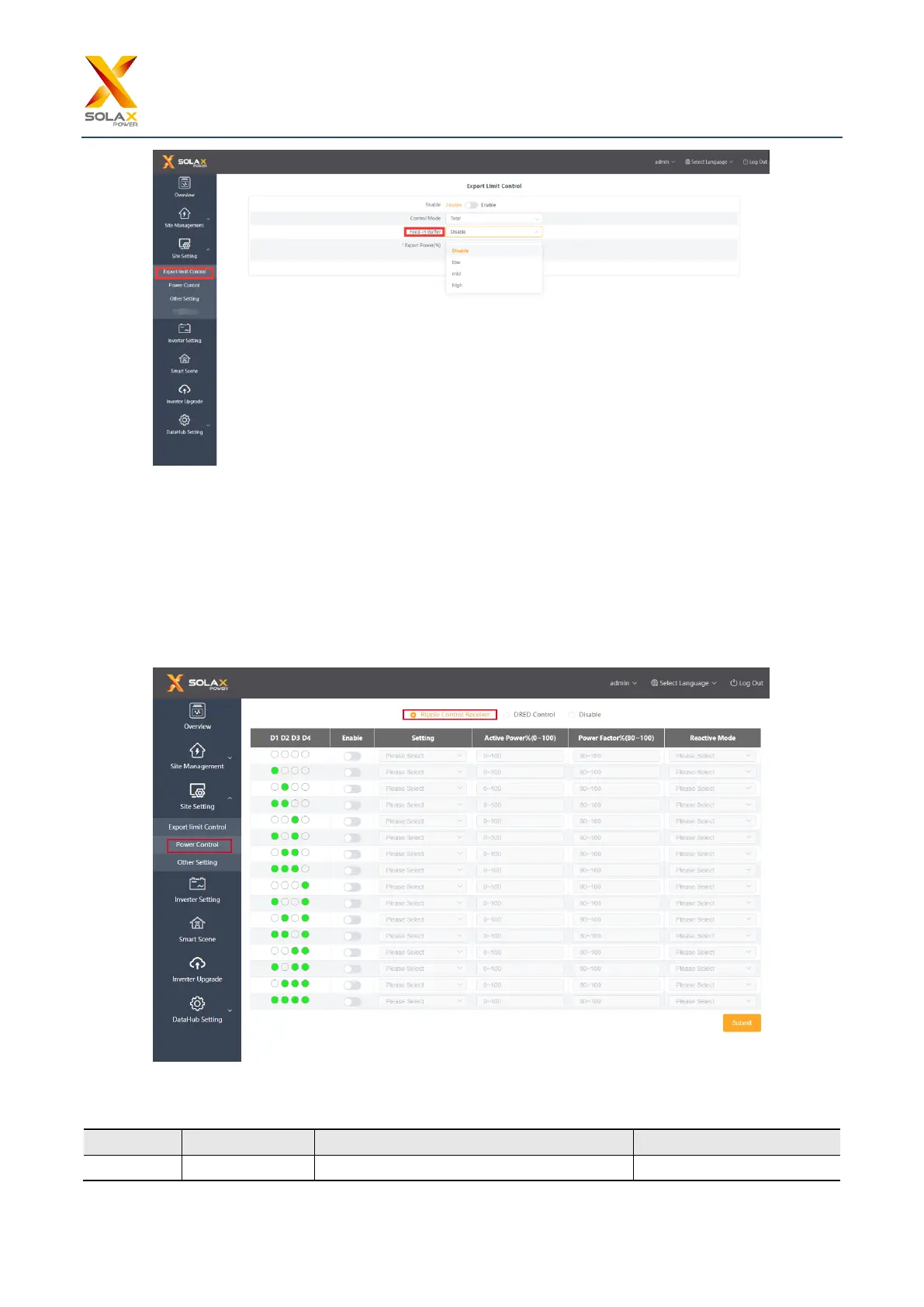

5.3.2 Power Control
Power control includes “Ripple Control Receiver” and “DRED Control” disable.
The “Ripple Control Receiver” is to control the input active power and reactive power, output active power and
reactive power of the inverter and inverter off according to the high or low input of the DI port.
The green one indicates the high input of power; the white one indicates the low input of power. There are a total of
16 situations for users to set the active and reactive power according to each situation.
DRED control is applied to set the active power according to high or low input of the A0, A1, D1, D2 and D3 of DI
ports.
