Connection Steps:
60mm
12mm
60mm
12mm
I Version

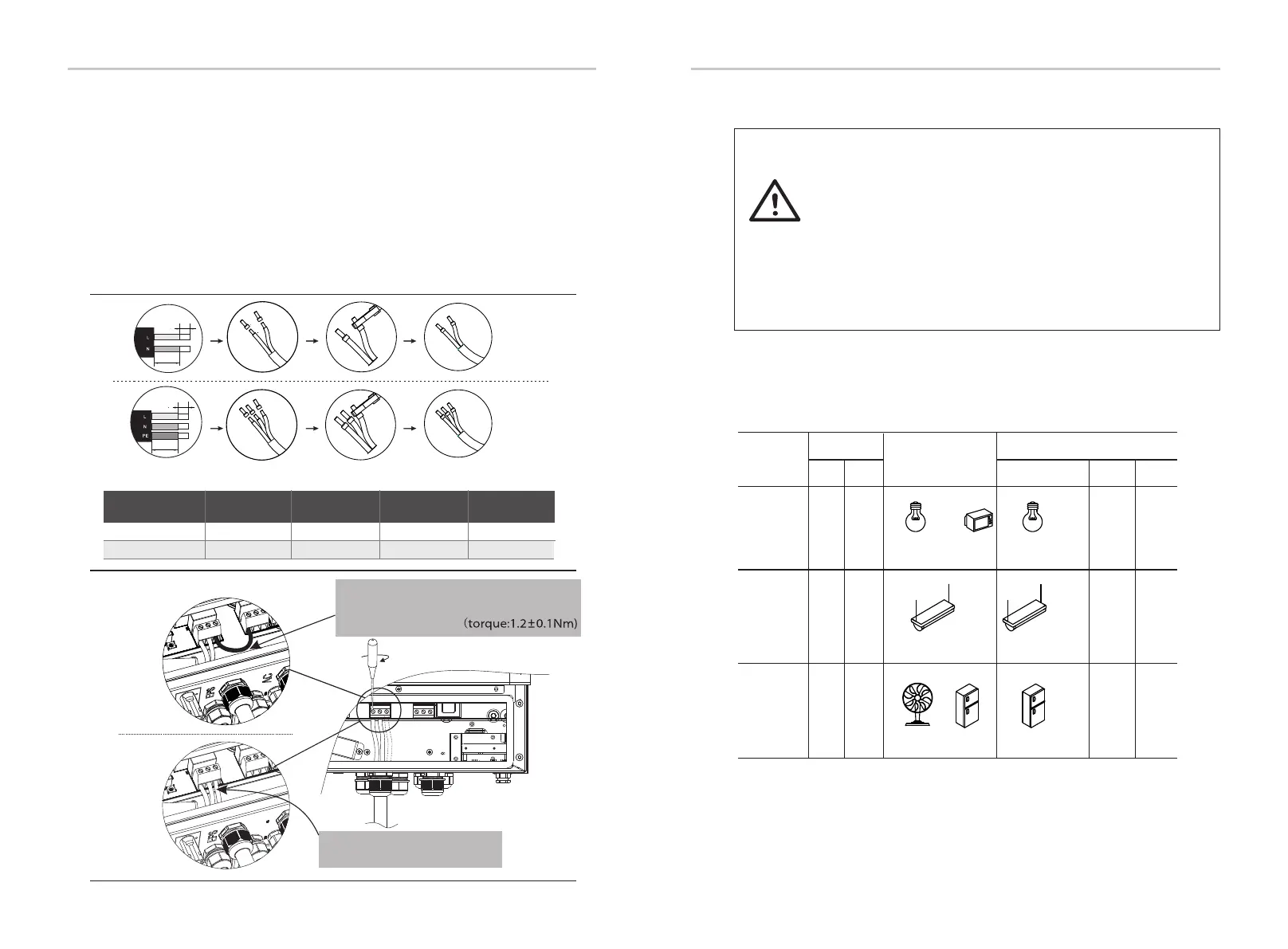

Step1.Make EPS wires.
3.1 Choose the appropriate wire(cable size: refer to picture below).
3.2 Reserve about 60mm of conductor material sectional area.
3.3 Remove 12mm of insulation from the end of wire.
3.4 Insert stripped wires into AC terminal and insure all conductor strands are captured in
the AC terminal.
3.5 Compress the AC terminal head by using a crimping pliers and screw down screw cap tightly.
Step2. Insert EPS cable into EPS port through screw cap and then tighten the
screw cap. Insert L wire, N wire and PE wire( PE wire applies to E Version only)
into corresponding ports of EPS terminal and screw them tightenly.
Step2.
L
N
PE
I Version
E Version
Note: Connect PE wire into
PE port!
Note: The black cable( the I port ) has
been wired during the
manufactory.
Step1.
Ø Requirements for EPS loadØ
Make sure the EPS load power rating is within EPS output rating,
otherwise the inverter will shutdown with an “over load” warning.
When an “over load” is appeared, adjust the load power to make
sure it is within the EPS output power range, then turn the inverter
back on.
For the nonlinear load, please make sure the inrush power should
be within the EPS output power range.
Configuration current less than the maximum dc input current,
generally lithium and lead acid capacity and voltage are linear decline.
WARNING !
Below table shows some co loads for you reference.mmon feasible
Note: Please check with the manufacturer for high power inductive load.
Type
Power
Start
Rated
Common
equipment
Example
Resistive
load
Inductive
load
Capacitive
load
X 1
X 2
X 1
X 1.5
X 3~5 X 2
Start
Rated
100VA
(W )
100VA
(W )
80VA
(W )
60VA
(W )
450-750VA
(W)
300VA
(W)
Equipment
Fluorescent lamp
Fluorescent lamp
40W
Fan
Fridge Fridge
150W
Incandescent
lamp
TV Incandescent
lamp
100W
L
N I
Electrical ConnectionElectrical Connection
28
29
E Version
Table 5 Cable and Micro-breaker recommended
EPS Cable
≥5mm²
EPS breaker
≥5mm² ≥5mm² ≥5mm²
25A 25A 32A 32A
Model
X1-Hybrid-3.0-D
X1-Hybrid-3.0-N
X1-Hybrid-3.7-D
X1-Hybrid-3.7-N
X1-Hybrid-4.6-D
X1-Hybrid-4.6-N
X1-Hybrid-5.0-D
X1-Hybrid-5.0-N
