Electrical ConnectionElectrical Connection
3434
35
Meter Connection Steps:
Ø
Step3. Trip the insulation from the communication wires, then insert one side
of wires into pin1 and pin2 holes of the 8 pin positive terminal which can be
found in accessories package. And then screw them tightly.
Step4. Insert the positive terminal into the corresponding negative terminal block
inside of the inverter. And then screw it tightly.
Step1. Prepare a connector and two communication wires.
Step2. Unscrew the nut of Meter connector and insert two communication
wires through it.
Step1 Step2
Step3
10.0mm
conductor
Step4

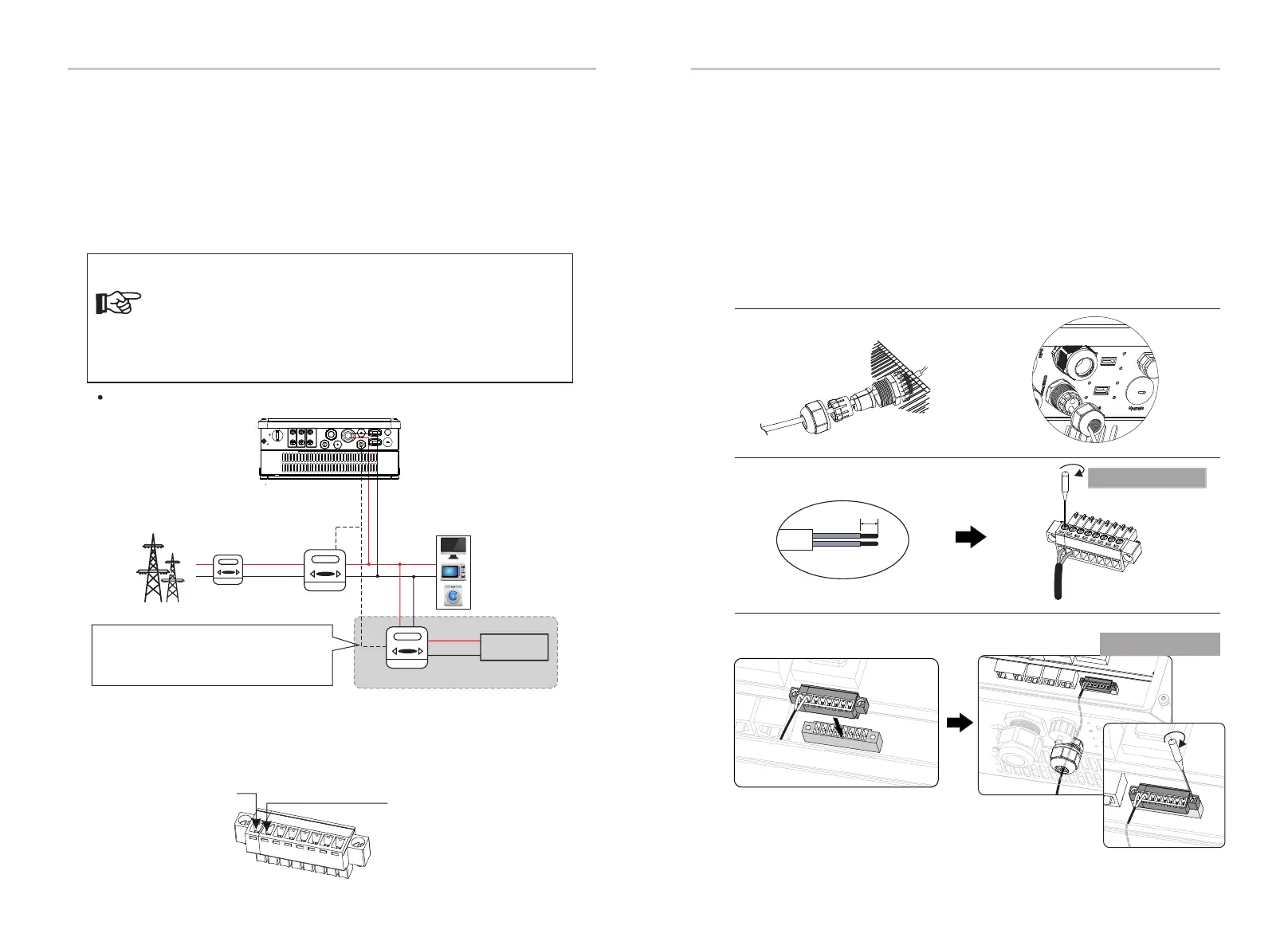

6.6 Meter/CT Connection
Meter PIN DefinitionØ
Communication interface bewteen inverter and meter is RS485 with two wires.
Note: Plseae make sure meterA and meterB is connected to port RS485A and
RS485B on the meter.
Note！
It is necessary to connect meter to inverter otherwise inverter will
shutdown with a “Meter fault” alert.
The smart meter must be authorized by Solax, any third party or
non-authorized meter may not match with the inverter.
Solax will not take the responsibility if the meter is unavailable.
Electrical
grid
Home Electric meter
Single phase
meter
Load
L
N
Meter connectionØ
Meter connection diagram
other generator
Meter1
Meter2
X1-Hybird inverter should work with a Meter or a current sensor(CT for short below) for
monitoringthepowerusage. A meter or a CT could deliver the data to inverter to
achieve the export control function.
User can choose to use a Meter or a CT in accordance with the actual use.
Please note that it is necessary to use the meter/CT brand recommanded by SOLAX.
If user has other generator in home and wants to monitor
it both, X1-Hybrid inverer provides a communication function
for monitoringthe other generator device by installing
another Meter2.
For more referance, please contact SOLAX.
B
C
I
EPS
Grid
+
PV1 PV2 BAT
+ +
- - -
ON
OFF
WiFi
RF
Upgrade
DRM/Meter
LAN
BMS
CAN/GEN
meterA(pin1)
meterB(pin2)
Torque:0.2±0.1Nm
Torque:0.4±0.1Nm
