Operation MethodOperation Method

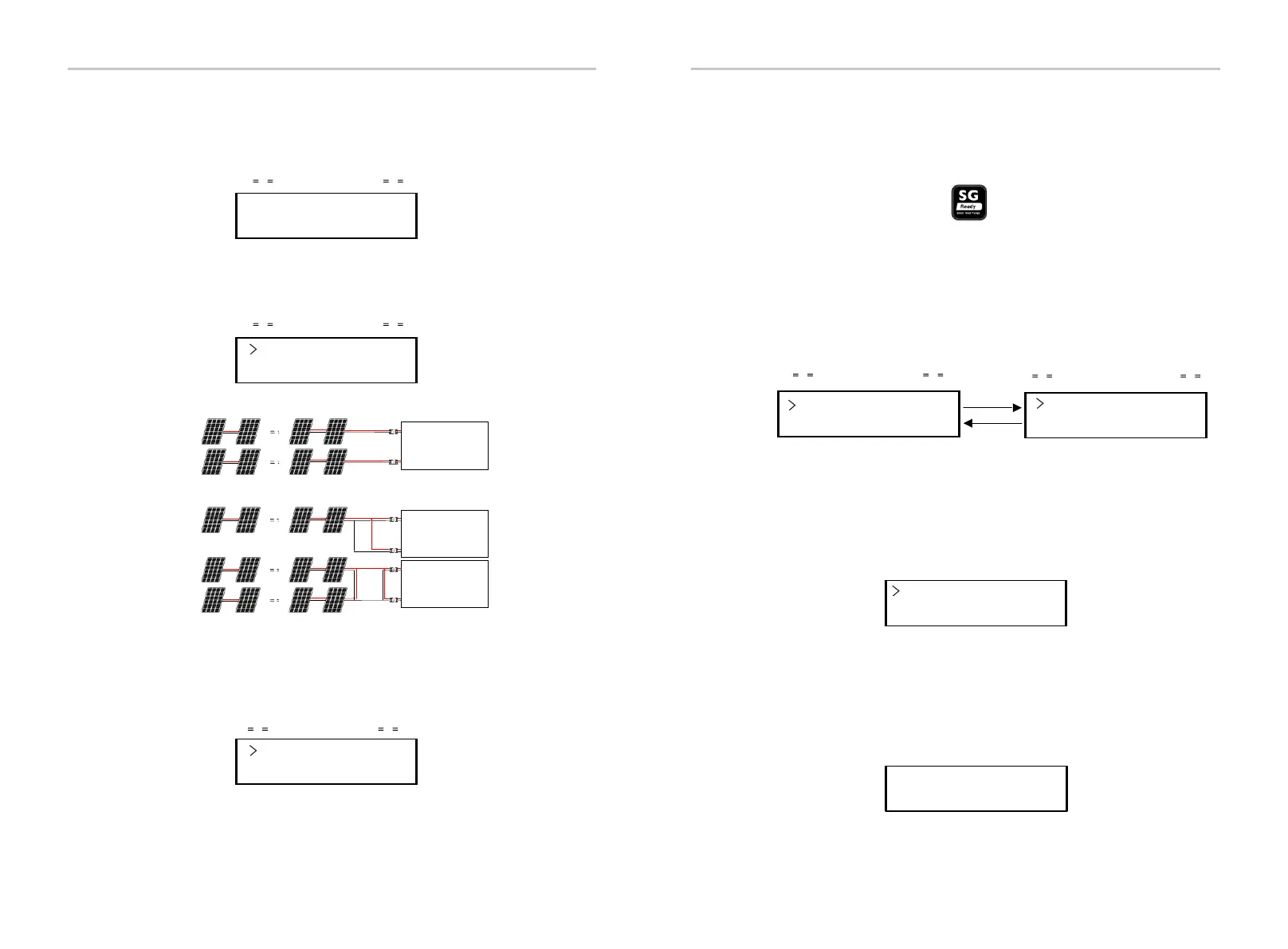

n) Machine Type
The user can check the Machine Type by this function.
15.0-T
Machine Type
There are three functions(Disable/Manual/Smart Save) which can be selected
for Load Management. “Disable” means the heat pump is off. When “Manual” is
selected the user can control the external relay to remain close or open
manually. “Smart Save” mode can set the values of the heat pump’s on/off time
and conditions, operating modes.
If the user uses the inverter dry contacts to control heat pump through Adapter
box, please refer to the Adapter Box Quick Installation Guide to set the
parameters here.
>Load Management<
Dry Contact
Load Management
Disable/Manual/Smart Save
Enter
Back
o) PV Connection
The user can select the PV connection type by this function.
Mode Select
Mode Select
> Multi/Comm <
p) Nline Control
The user can enable or disable the Nline Control by this function.
Mode Select
> Enable/Disable<
PV Connecon
Nline Control
Machine Type
Load Management
Ÿ Meter Energy
The user can check the import and export energy by this function. There are
four parameters: “Today Import”, “Total Import”, “Today Export”, “Total Export”.
Press “Up” and “Down” to review the values.
Today Import:
0.0kWh
Meter Energy
﹦﹦ ﹦﹦ ﹦﹦ ﹦﹦
r) Modbus Function
Select “EV Charger” for communication with the EV-Charger, select “COM485”
for communication with other devices.
q) Dry Contact
The user can use the Dry Contact to connect SG Ready heat pump by this
function via Adapter Box.
Function Select
EV Charger
Modbus Function
﹦﹦ ﹦﹦
﹦﹦ ﹦﹦
66 67
PV 1PV 1
+
-
PV 2
+
-
X1 HYD G4
PV 1
+
-
PV 2
+
-
+
-
PV 1PV 1
+
-
PV 2
+
-
X1 HYD G4
PV 1
+
-
PV 2
+
-
PV 1PV 1
+
-
PV 2
+
-
X1 HYD G4
PV 1
+
-
PV 2
+
-
Inverter
PV
Inverter
Inverter
Inverter
> Multi <
> COM <
