Solcon RVS-DN 310 - Page 35

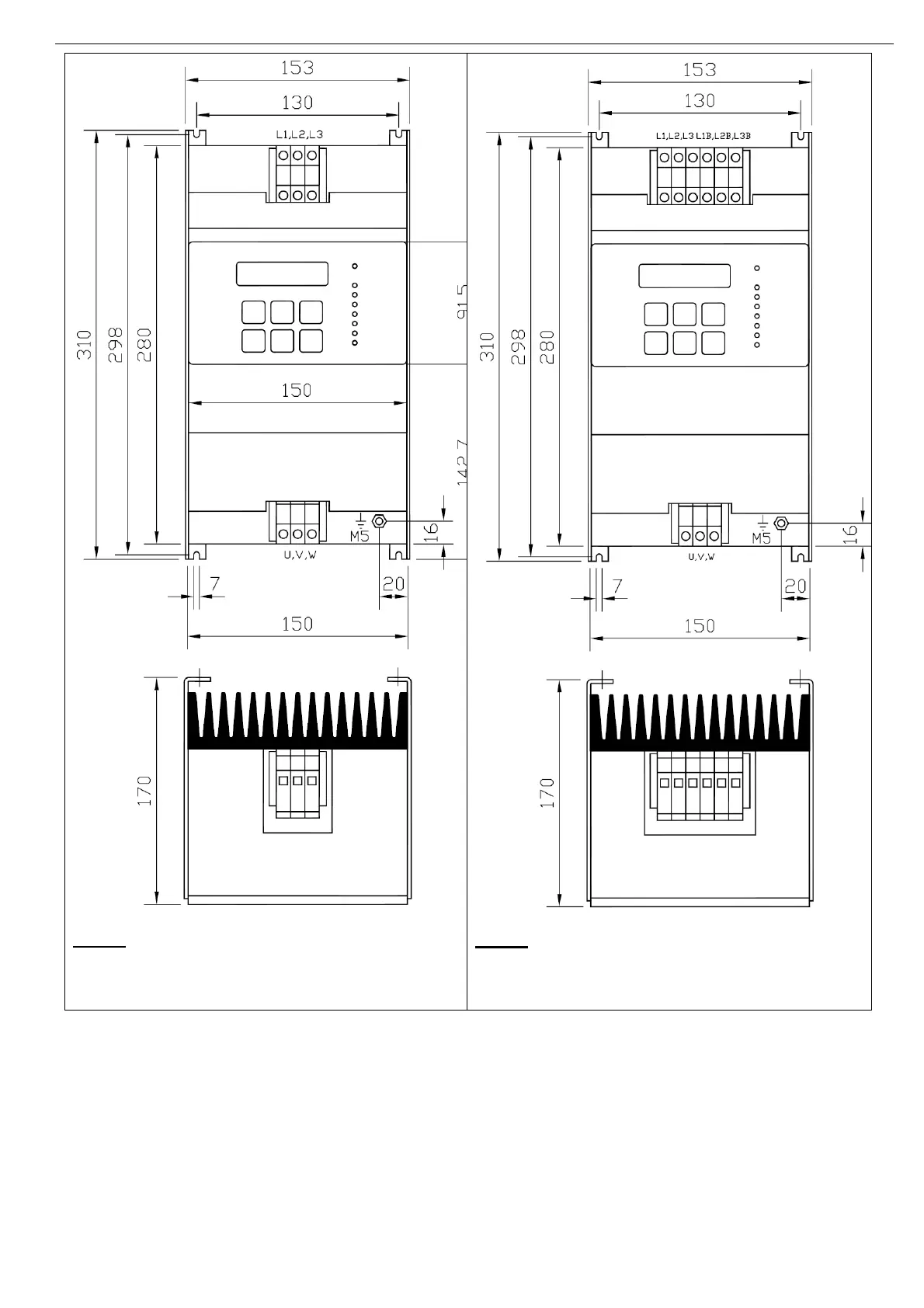

35 • Dimensions
________________________________________________________________________________________________
RVS-DN 31A
Notes:
• Mains voltage terminals: 16mm
2
.
• Add 20 mm to depth dimension when optional
remote key-pad (option D) is installed.
RVS-DN 31A with preparation for bypass
Notes:
• Mains voltage terminals: 16mm
2
.
• Add 20 mm to depth dimension when optional
remote key-pad (option D) is installed.
