36 • Dimensions
_____________________________________________________________________________________________

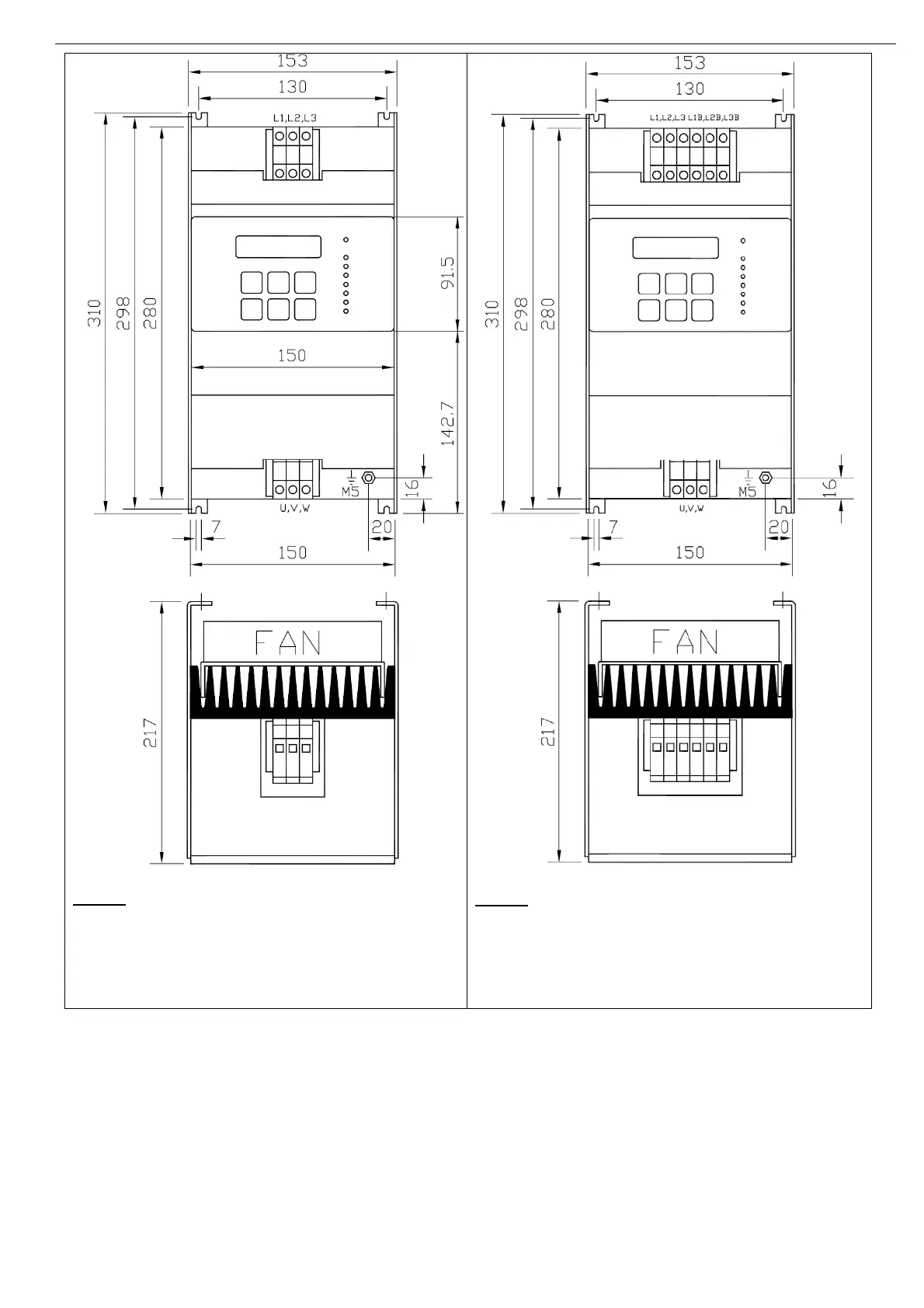

RVS-DN 44A 58A 72A
Notes:
• Mains voltage terminals: RVS-DN 44A 58A -
16mm
2
.
• Mains voltage terminals: RVS-DN 72A - 35mm
2
• Add 20 mm to depth dimension when optional
remote key-pad (option D) is installed.
RVS-DN 44A 58A 72A with preparation for bypass
Notes:
• Mains voltage terminals: RVS-DN 44A 58A -
16mm
2
.
• Mains voltage terminals: RVS-DN 72A - 35mm
2
• Add 20 mm to depth dimension when optional
remote key-pad (option D) is installed.
