Solcon RVS-DN 310 - Page 40

40 • Dimensions
_____________________________________________________________________________________________

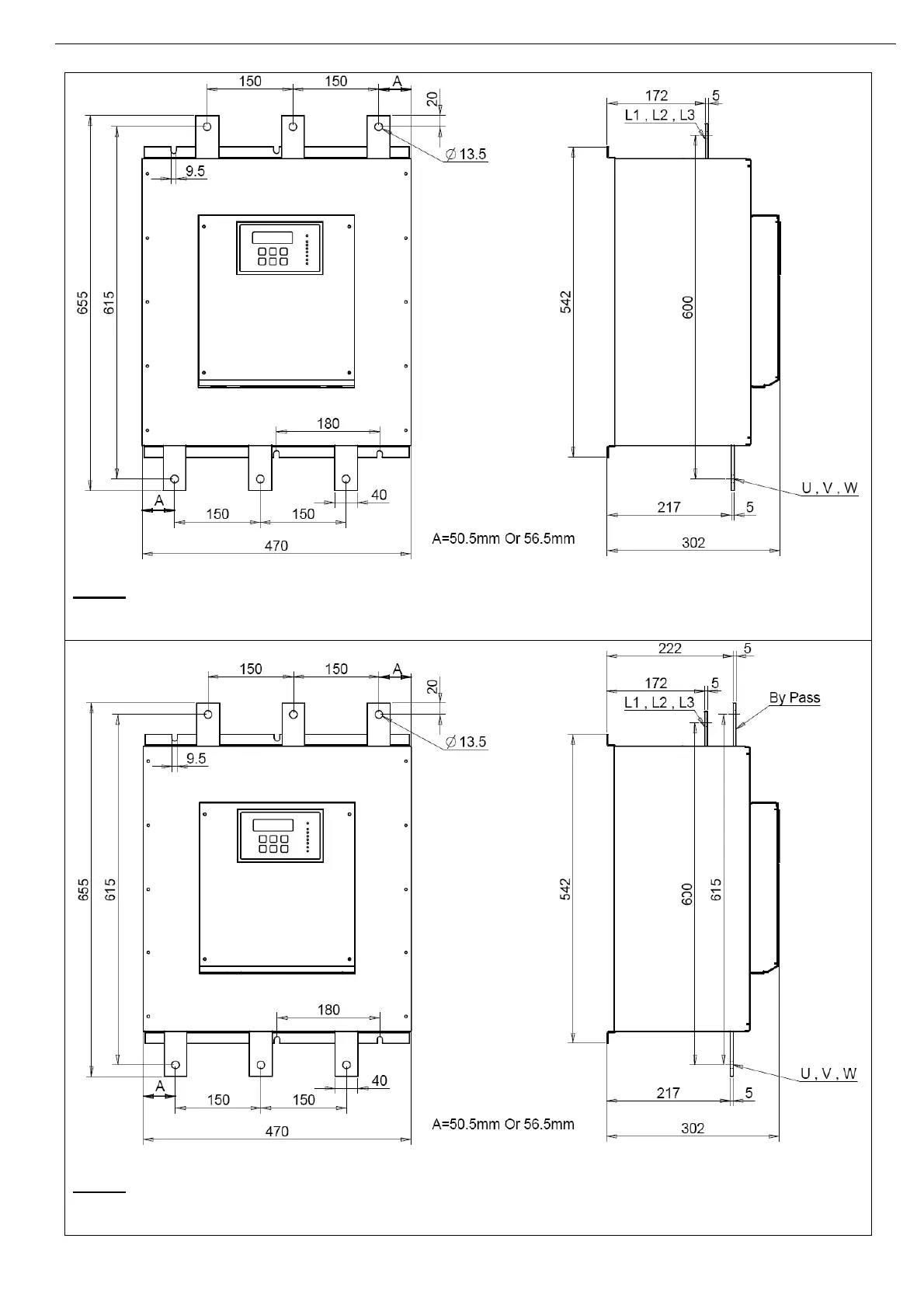

RVS-DN 580A
Notes:
• For marine/UL cUL approved model dimensions refer to section
5.3 page 47.
• Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.
RVS-DN 580A with preparation for bypass
Notes:
• For marine/UL cUL approved model dimensions refer to section
5.3 page 47.
• Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.
