41 • Dimensions

________________________________________________________________________________________________

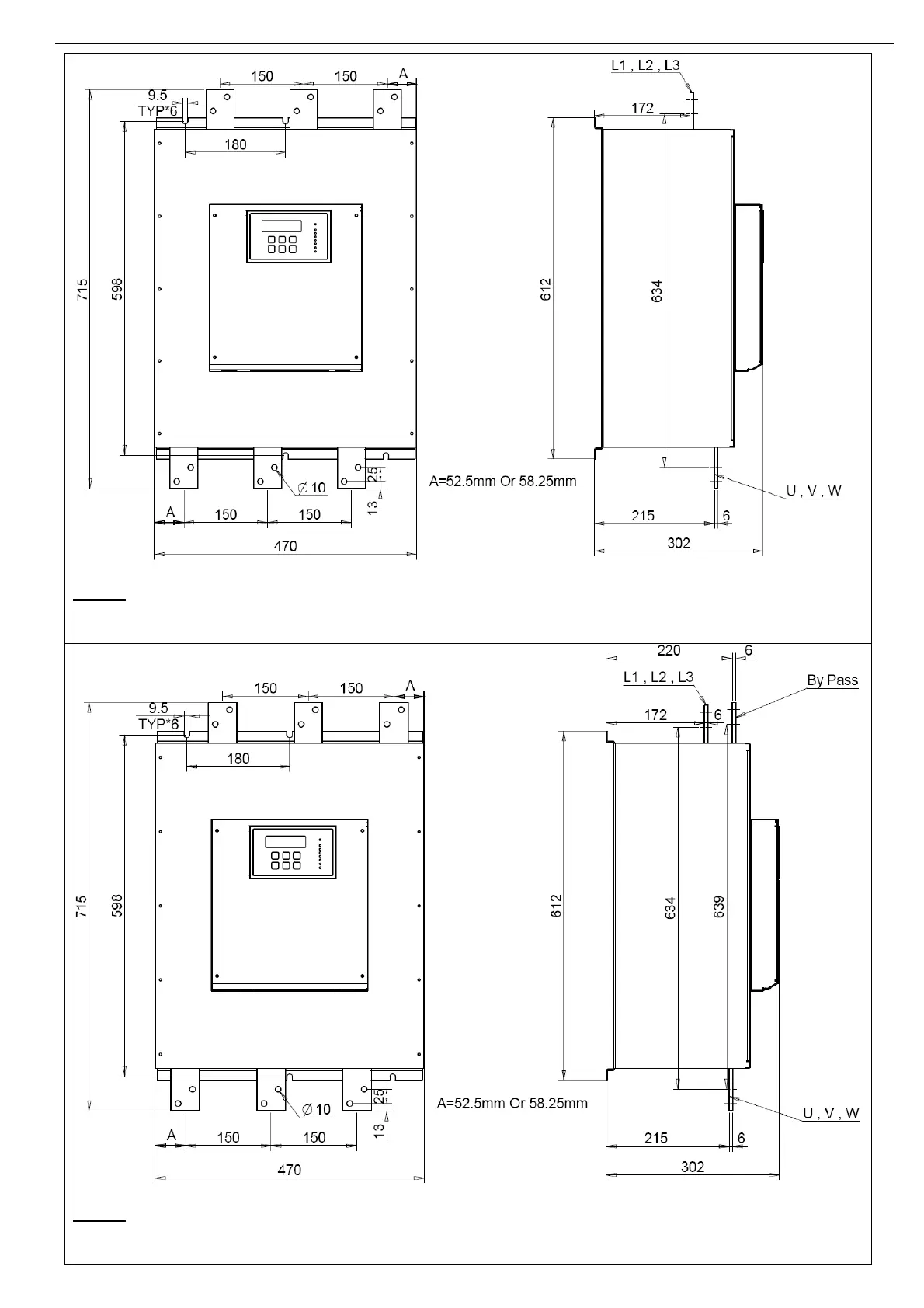

RVS-DN 820A

Notes:

• For marine/UL cUL approved model (RVS-DN 820A only) dimensions refer to section

5.3 page 47.

• Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.

RVS-DN 820A with preparation for bypass

Notes:

• For marine/UL cUL approved model (RVS-DN 820A only) dimensions refer to section

5.3 page 47.

• Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.
