Solid State Logic BiG SiX User Manual

BiG SiX User Guide
Console Overview
14
Cue Outputs and External Inputs
Stereo Cue Master Section (including Talk Input)

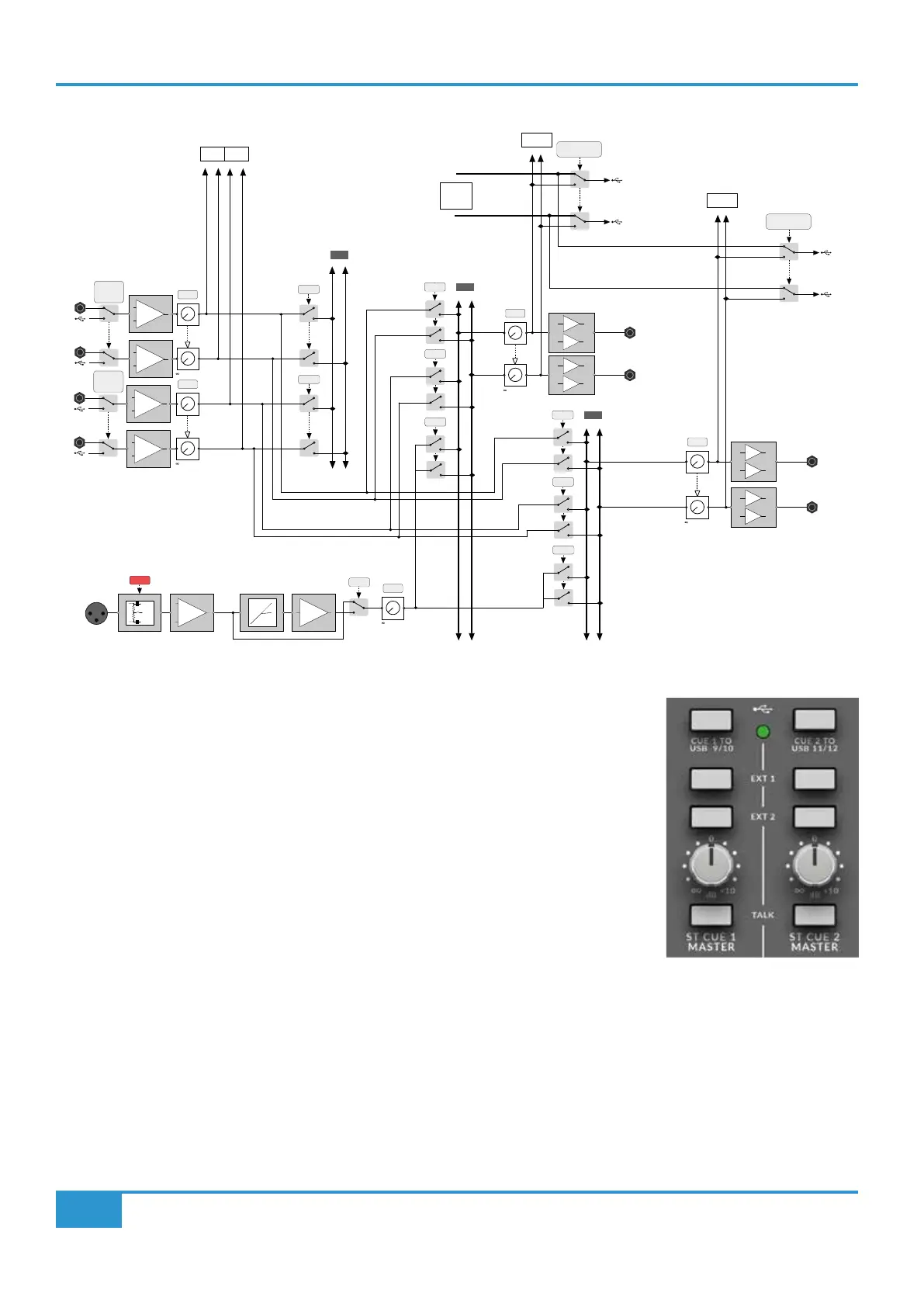

The two Stereo Cue buses in BiG SiX feed the Stereo Cue Master section. This section is split
vertically with the left column controlling Stereo Cue 1 and the right controlling Stereo Cue 2.
The knobs in this section control the master level of the individual Cue outputs. As can be seen
in the block diagram above, they are the last controls before the output (i.e. after the selected
sources).
The upper switches in this section re-route the Cue Output via A/D converters to the relevant USB
Sends. These signals replace the outputs from the relevant Stereo Channels. i.e. the Switch CUE
1 TO USB 9/10 replaces the Stereo Channel USB Sends to USB 9/10 with the output of the Stereo
Cue 1 Master and similarly for the CUE 2 TO USB 11/12 switch. A green LED illuminates if either
switch is selected.
Three switches sum TALK, EXT 1 and EXT 2, with the following functions:
- TALK - sums the output of the Talk section with the Cue Bus to the selected Cue Output
- EXT 1 - sums the External Source 1 input with the Cue Bus to the selected Cue Output
- EXT 2 - sums the External Source 2 input with the Cue Bus to the selected Cue Output
Talk Input Pre-amplier and LMC
BiG SiX’s Talk Input is an additional pre-amplier and compressor circuit nominally designed to provide talkback facilities to the
Stereo Cue outputs of the console, but with several other possible applications when the design is explored more fully.
CUE 2 TO
MON
EXT 1 TO
MAIN
EXT 2 TO
MAIN
CUE 1 TO
MON & B/C
USB RTN
15/16
TO EXT 2
L
R
USB RTN
13/14
TO EXT 1
+
-
EXT 1
+
-
L
R
+
-
EXT 2
+
-
LEVEL
to +20dB
LEVEL
to +20dB
EXT 1
EXT 2
+
-
+
-
STEREO
CUE 1 OUT
1L
1R
+
-
+
-
STEREO
CUE 2 OUT
2L
2R
to +10dB
LEVEL
ST CUE 1
to +10dB
LEVEL
ST CUE 2
+45dB
+
-
LEVEL
to 0dB
+48V
48V
TALK INPUT
IN
TB
LMC
EXT IN
+20dB
CUE OUTPUTS
EXT 1
EXT 2
TALK
L R
L R
MIX
L R
CUE 1
USB RTN
13
EXT 1
EXT 2
TALK
L R
L R
MIX
L R
CUE 2
USB RTN
14
USB RTN
15
USB RTN
16
USB
SEND
9
CUE TO USB
CUE 1 TO 9/10
USB
SEND
10
USB
SEND
11
CUE TO USB
CUE 2 TO 11/12
USB
SEND
12
L R
L R
MIX
L R
MON
STEREO
CHANNEL
USB FEEDS
9/10 & 11/12
L R
L R
L R
L R
