SUM INPUT TO MAIN BUS
The "SUM I/P TO MAIN connections on the rear panel are a simple pair of unity gain, stereo, buffered line input connections that
sum directly onto the Main Left and Right buses. Typically these might be used to cascade the mix bus signals from another sub-
mix console onto the BiG SiX Main bus, such as an SSL SiX console as illustrated below.

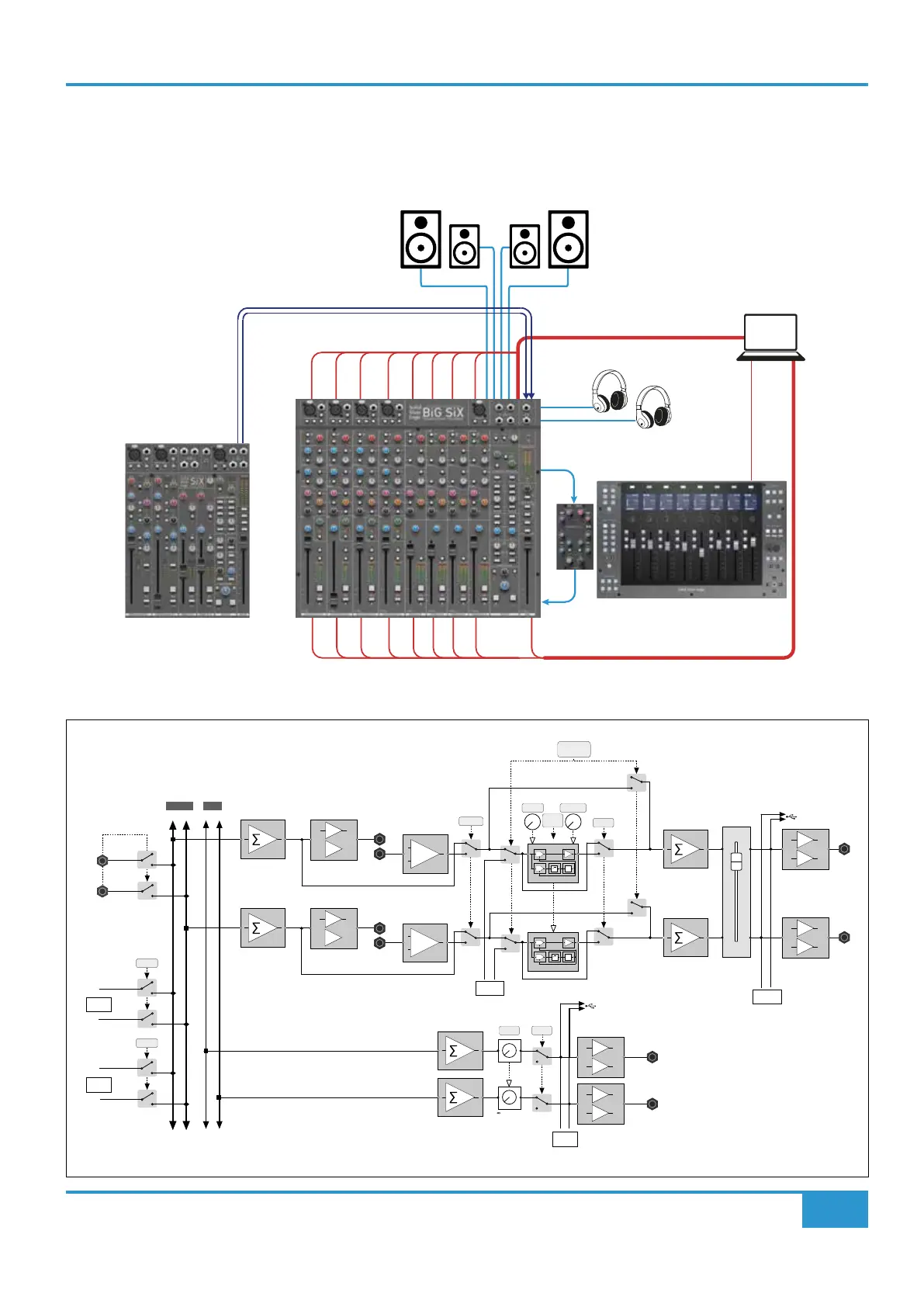

Main Mix Bus Block Diagram showing 'Sum I/P to Main' connection on left hand side.
